Replacing sealing cap for vacuum pump (S55 engine)

Special tools required:

Necessary preliminary tasks:

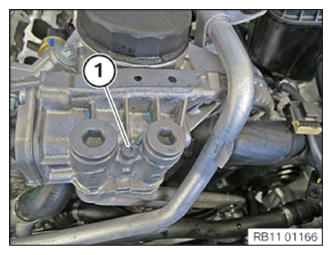

Release screw (1).

Lay oil lines to one side.

Installation note:

Replace O-rings.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing sealing cap:

Prepare special tool 11 8 530.

Remove special tool 11 8 533 from special tool 11 8 532.

Install special tool 11 8 534.

Special tool 11 8 536 is not required.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 8 531 to long special tool 11 8 535.

Short special tool 11 8 535 (short); a 6 mm thick M10 washer must be placed underneath between crankcase and special tool 11 8 531.

NOTE: For purposes of clarity, illustrations show alternator and power steering pump removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 8 537 must be positioned manually on sealing cap.

Screw in special tool 11 8 534.

NOTE: The sealing cap is pressed out diagonally during this work step

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sealing cap:

Prepare special tool 11 8 530.

Remove special tool 11 8 534 from special tool.

Install special tools 11 8 533 and 11 8 532.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
