Replacing crankshaft (S55 engine)

Special tools required:

• 00 2 010
• 00 9 120
• 11 4 370
• 11 4 440
• 11 4 470
• 11 6 251
• 11 6 252
• 11 9 360

Attention!

Aluminium screws/bolts are permitted with and without color coding (blue).

Aluminium screws/bolts must be replaced each time they are released  .

For reliable identification:

Aluminium screws/bolts are not magnetic  .

Jointing torque and angle of rotation must be observed without fail (risk of damage)  .

Attention!

After each release of the central bolt on the crankshaft, the following components must be replaced without fail.

1. Central bolt
2. Eka grip disc
3. Camshaft sprocket with the welded-on Eka grip discs
4. Camshaft sprocket for the timing chain drive

Necessary preliminary work:

• Remove ENGINE .
• Mount engine on ASSEMBLY STAND .
• Remove VIBRATION ABSORBER .
• Remove OIL SUMP .
• Remove OIL PUMP .
• Remove TIMING CHAIN MODULE .
• Remove OIL PUMP/VACUUM PUMP CHAIN MODULE .
• Remove CYLINDER HEAD .
• Remove FLYWHEEL .
• Remove all PISTONS .

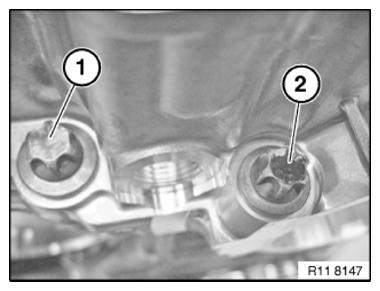

Release aluminium screws (1).

Release aluminium screws (2).

Installation note:

Replace aluminium screws  .

Courtesy of BMW OF NORTH AMERICA, INC.

Release aluminium screws (1).

Installation note:

Replace aluminium screws  .

Courtesy of BMW OF NORTH AMERICA, INC.

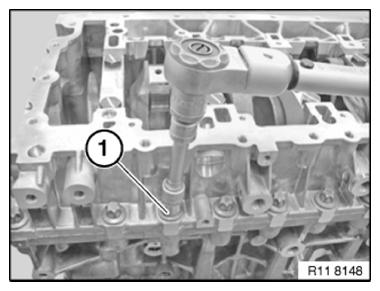

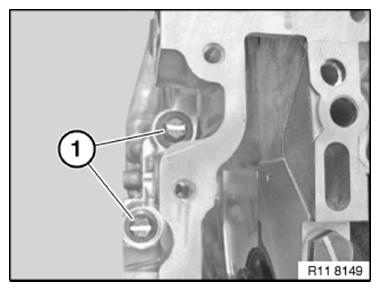

Release screws (1).

Unfasten screws (2).

Installation note:

Replace aluminium screws  .

Release steel screws (14 to 1) from outside inwards.

Remove crankcase lower section upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Remove crankshaft with aid of a second person.

Weight of crankshaft approx. 25 kg.

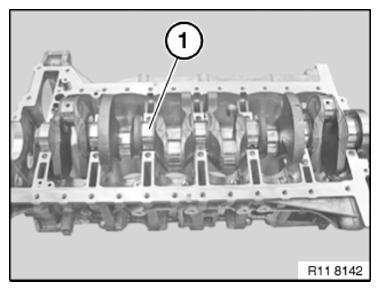

Remove crankshaft (1) upward in direction of arrow.

Remove BEARING SHELL  (2) and guide bearing shell (3) and replace as necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all sealing surfaces (1) with special tool 11 4 470.

Courtesy of BMW OF NORTH AMERICA, INC.

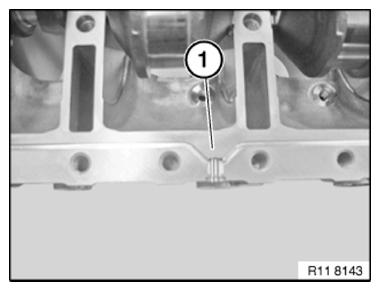

Check fitting sleeves for damage and secure seating; replace if necessary.

Engage all BEARING SHELLS .

Installation note:

Oil all bearing points adequately with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Insert crankshaft with aid of a second person.

Weight of crankshaft approx. 25 kg.

Insert crankshaft (1).

Fit crankcase lower section (watch fitting bushes).

Courtesy of BMW OF NORTH AMERICA, INC.

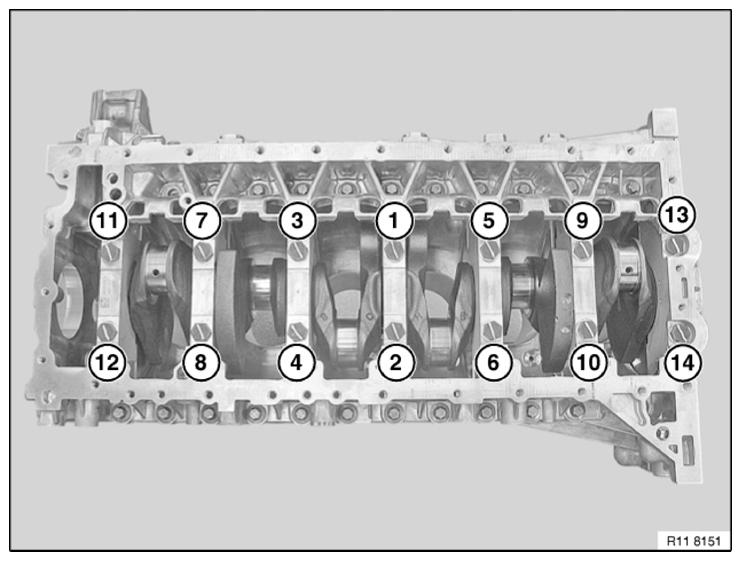

Follow tightening/torque sequence for the steel bolts (1 to 14).

Join STEEL BOLTS (1).

Courtesy of BMW OF NORTH AMERICA, INC.

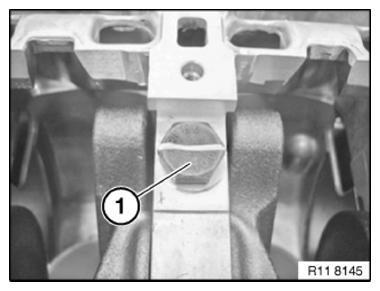

Mark across all steel bolts (1) with a colored mark.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all steel bolts with a special tool 00 9 120.

Tightening torque 11 11 1AZ .

Installation note:

All steel bolts must be positioned identically with the colored mark after attaching (see illustration R 11 8151).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Aluminium bolts (1) and (2) can have a blue colored mark.

Aluminium screws/bolts are not magnetic.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

In the case of aluminium screws, jointing torque and angle of rotation must be observed without fail.

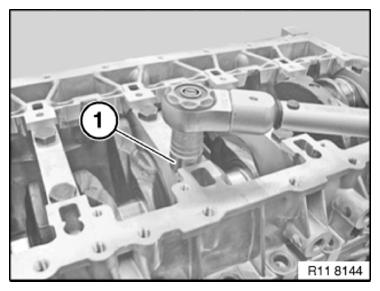

Join all ALUMINIUM BOLTS (1) from inside toward the outside.

Tightening torque 11 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mark across all aluminium bolts (1) with a colored mark.

Courtesy of BMW OF NORTH AMERICA, INC.

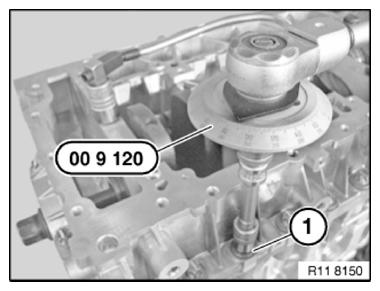

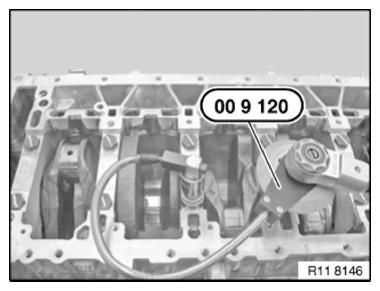

Tighten all aluminium bolts (1) only with special tool 00 9 120.

Tightening torque 11 11 3AZ .

Tightening torque 11 11 4AZ .

Installation note:

All aluminium bolts must be equally positioned with respect to the colored mark after being fastened.

Courtesy of BMW OF NORTH AMERICA, INC.

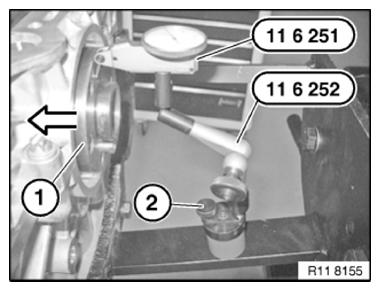

Fit special tool 11 6 252 with magnetic foot on special tool 11 4 440.

Clamp special tool 11 6 251 on special tool 11 6 252.

Position special tool 11 6 251 with button on the flat side of the crankshaft.

Press crankshaft (1) in direction of arrow up to stop.

Set dial gauge with knurled screw (2) on zero.

Courtesy of BMW OF NORTH AMERICA, INC.

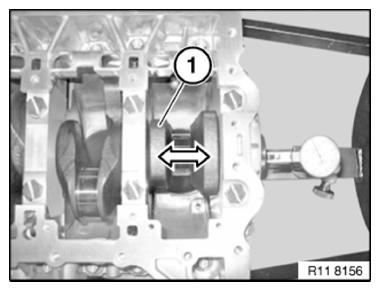

Press crankshaft (1) in direction of arrow from right to left up to stop.

Determine CRANKSHAFT AXIAL CLEARANCE .

Courtesy of BMW OF NORTH AMERICA, INC.

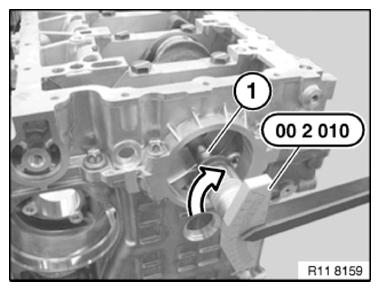

Turn crankshaft (1) via the central bolt with special tool 00 2 010 to determine the COEFFICIENT OF FRICTION .

Courtesy of BMW OF NORTH AMERICA, INC.

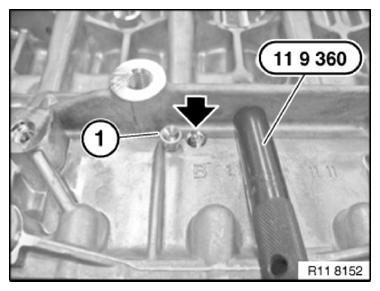

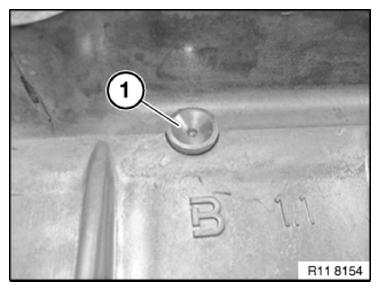

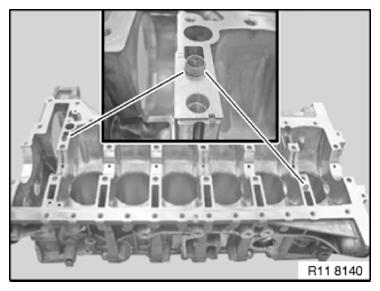

Drive both injector nozzles (1) on left and right on crankcase into the bore hole (see arrow in illustration) with special tool 11 9 360.

Installation note:

Replace injector nozzles (1).

Courtesy of BMW OF NORTH AMERICA, INC.

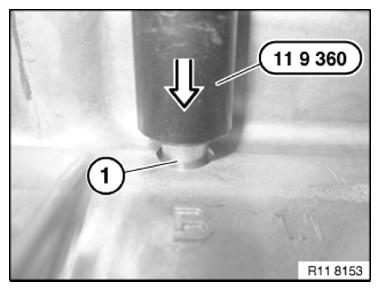

Drive in both injector nozzles (1) on left and right with special tool 11 9 360 into crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

Drive injector nozzle (1) all the way in.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use PRIMER 1.3 AND LIQUID SEALING COMPOUND 1.4 .

Prepare liquid sealing compound (2) in special tool 11 4 370.

Screw on nozzle (1) for injecting sealing compound.

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly  and evenly insert liquid sealing compound (1) via the injector nozzle with special tool 11 4 370 in direction of arrow.

Illustration shows N42.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace front CRANKSHAFT SEAL .

Replace CRANKSHAFT SEAL  (transmission side).

Assemble engine.
