Replacing rear radial crankshaft seal on transmission side (S55 engine)

Special tools required:

• 23 0 490
• 11 8 220
• 11 9 182
• 11 9 184
• 11 9 181
• 11 9 185
• 11 9 183

Necessary preliminary tasks:

• Remove FLYWHEEL .

Remove magnet wheel (1) from crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

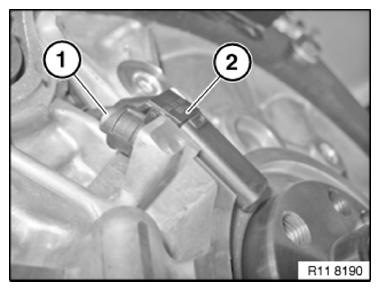

Release screw (1) on pulse sensor (2).

Slide PULSE SENSOR (2) upwards.

Tightening torque: 13 62 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

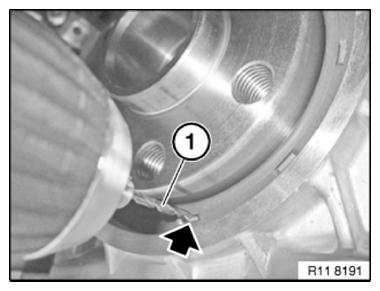

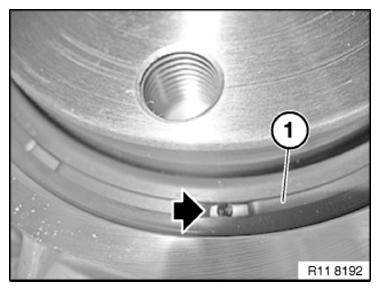

Drill a hole with a drill (1) in the radial shaft seal (see arrow in illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

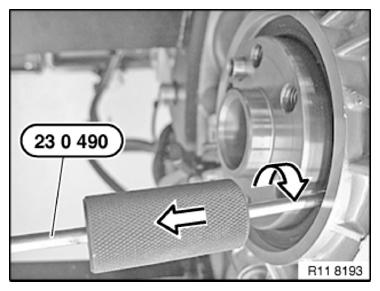

Screw in special tool 23 0 490 in direction of arrow.

Drive out radial shaft seal with impact weight in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare radial shaft seal (1) on special tool 11 8 220.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the radial shaft seal (1) with special tool 11 8 220 on the crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Brush radial shaft seal (1) over the special tool 11 8 220.

Move radial shaft seal (1) parallel up against the crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

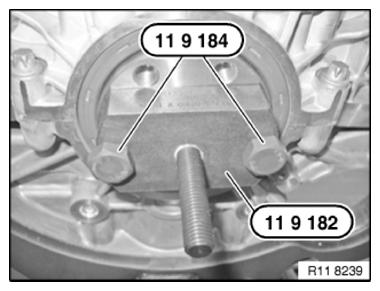

Fasten special tool 11 9 182 with special tool 11 9 184 on the crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Prepare special tool 11 9 181 for installation.

Connect special tool 11 9 185 onto special tool 11 9 181.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull on radial shaft seal with special tool 11 9 181 and 11 9 185 in combination with special tool 11 9 183.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on radial shaft seal with special tool 11 9 183 to limit position.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
