Removing and installing/replacing vibration damper (S55 engine)

Special tools required:

Necessary preliminary tasks:

Release screws on vibration damper.

Remove vibration damper.

Courtesy of BMW OF NORTH AMERICA, INC.

Visually check the HUB for damage and replace as needed.

Tighten screws on the vibration damper in sequence (1 to 8).

Tightening torque 11 23 1AZ .

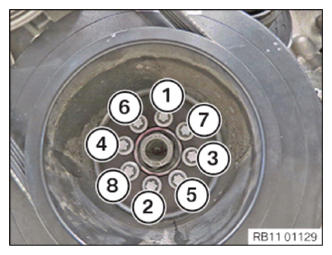

Fig 1: Vibration Damper Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
