Replacing rear roof shell seal (M4 Convertible)

Special tools required:

• 2 359 116
• 51 0 300

Installation note:

• Screws with sealing compound must be replaced and must not  be reused
• Thread of nut must be cleaned beforehand

New parts required:

• Gasket
• Butyl rope dia. 4 mm

Necessary preliminary tasks:

• Connect BATTERY CHARGER .
• Remove ROOFLINER .
• Move soft top into SERVICE POSITION .
• Bring vehicle to garage/workshop temperature

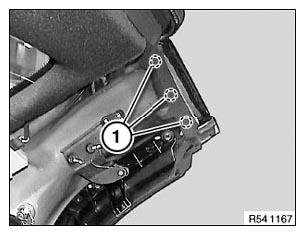

Release screws (1).

Release screw (2) with special tool 2 359 116.

Tightening torque 54 37 01AZ .

Pull seal off roof shell at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

On-the-job safety:

• Comply with the relevant safety regulations

REMOVE  remnants of adhesive from roof shell.

Clean adhesive area with isohexane.

Air drying time: ≥ 1 minute

Once it has been cleaned, do not touch the adhesive area with bare hands.

Use 4 mm dia. butyl bead (see the applicable BMW parts catalogue).

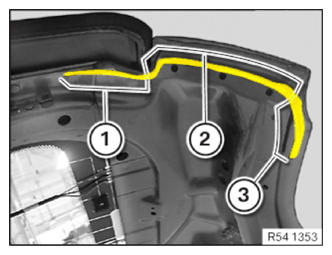

Overview of butyl bead laying on roof shell, front:

1. Apply butyl bead with dia. 4 mm ±1 mm with a length of at least 40 mm in sheet metal bead.
2. Apply butyl bead with dia. 4 mm ±1 mm above push pin bores.
3. Apply butyl bead with dia. 4 mm ±1 mm with a length of 70 mm in center of flange to roof shell.

Courtesy of BMW OF NORTH AMERICA, INC.

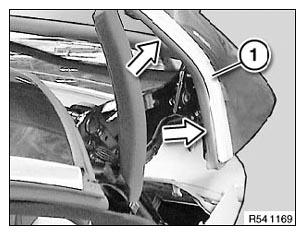

Installation note:

Press seal with trim strip (1) firmly onto roof shell.

Align screw fastening points to thread in roof shell.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Press seal onto butyl bead

Pop in seal in marked area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

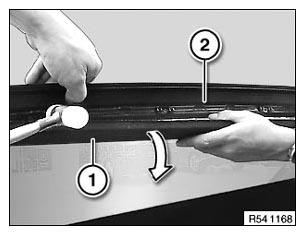

Installation note:

For optimum securing of seal (2), press down entire upper area with special tool 51 0 300.

If necessary, use plastic hammer and impact protection.

Courtesy of BMW OF NORTH AMERICA, INC.

Check retraction depth of window glass and adjust if necessary. Refer to ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW (M4) .

Carry out leak test.
