Removing butyl (M4 Convertible)

Special tools required:

Following components are required:

Method A:

Press out excess butyl with fishbone 00 9 321 under seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Stick adhesive strip (1) onto butyl and press down gently with fishbone 00 9 321.

IMPORTANT: Risk of paintwork damage!

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off adhesive strip (1).

If necessary, repeat procedure with new adhesive strip until butyl is removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Method B:

NOTE: Procedure in event of large-scale fouling of vehicle surface by butyl:

Shape lumps out of butyl remnants.

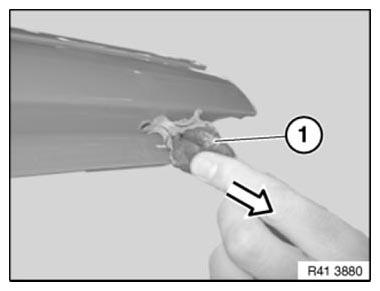

Press down butyl lumps (1) and pull off.

Repeat procedure until butyl remnants have been removed.

Clean painted surfaces with adhesive remover.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Adhesive remover attacks paint surfaces if allowed to act on surface for an extended period of time!
