Installing the drive for the glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Insert the gear (1) of the drive for the roller sunblind (2) precisely in the gearing (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

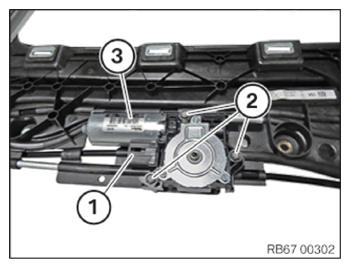

Position the drive (3) correctly.
Tighten down screws (2) .
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING COMPLETE PANORAMA GLASS ROOF .
Refer to INSTALLING WIND DEFLECTOR .
Refer to INSTALLING THE REAR PANORAMA GLASS ROOF LID .
Refer to INSTALLING THE FRONT PANORAMA GLASS ROOF PANEL .
Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
Refer to ADJUSTING THE PANORAMA ROOF LID AT FRONT .
Refer to ADJUSTING REAR PANORAMA ROOF COVER .
Refer to CHECKING THE ROLLER SUNBLIND AND THE GLASS ROOF FOR FUNCTION .
Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMA ROOF) .
Refer to INSTALLING THE BELT FEED TRIM .
Refer to INSTALLING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS .
Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
Refer to INSTALLING THE ROOF FUNCTION CENTER .
Refer to INSTALLING THE COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
Refer to INSTALLING THE COVER ON THE INSIDE MIRROR .
Refer to INSTALLING ALL GRAB HANDLES .
Refer to INSTALLING THE TRIM PANEL FOR LEFT AND RIGHT THE LUGGAGE COMPARTMENT CAPPING .
Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
Refer to INSTALLING C-PILLAR TRIM PANEL AT BOTTOM LEFT AND RIGHT .
Refer to INSTALLING THE DOOR SILL COVER STRIP ON THE REAR LEFT AND RIGHT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
Refer to INSTALLING TOOLKITS .
Refer to INSTALLING THE EMERGENCY WHEEL .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
Refer to INSTALLING BOTH FRONT HEAD RESTRAINTS .
Refer to INITIALIZING PANORAMA GLASS ROOF .
