Installing the rear panorama glass roof lid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

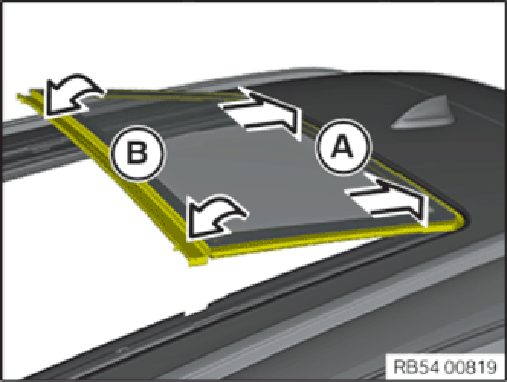

- Feed the panorama roof cover at the rear with the water channel in the arrow direction into the roof. (A)
- Fold panorama roof cover downwards in the arrow direction. (B)NOTE: Perform the steps on the right and left side.
- Replace screws (1).
Parts : Screws
- Thread in the screws (1) but do not yet tighten.
Follow-up work
- Refer to INSTALLING THE FRONT PANORAMA GLASS ROOF PANEL .
- Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
- Refer to ADJUSTING THE PANORAMA ROOF LID AT FRONT .
- Refer to ADJUSTING REAR PANORAMA ROOF COVER .
- Refer to INITIALIZING PANORAMA GLASS ROOF .
