Checking the adjustment of the panorama glass roof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Panoramic glass sunroof is completely closed, roller sunblind is open.
- Check if the distance of the panorama glass roof lid to the roof is the same at the front and rear.

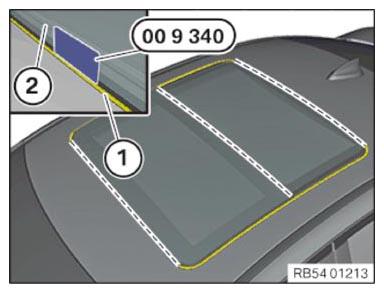

- Insert special tool 0 493 687 (00 9 340)
between the seal (1) and the panorama glass roof lid (2).
The resistance when moving the special tool must be the same at the front and rear.

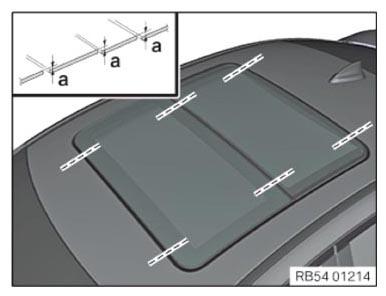

- Make sure the front of the lid is flush to a dimension of (a) lower than the roof outer skin at the front.
- Make sure that the front of the lid is flush to a maximum dimension of (a) higher than the rear of the lid.
- Make sure the rear of the lid is flush to a dimension of (a) higher than the rear of the roof outer skin.TECHNICAL DATA SPECIFICATION

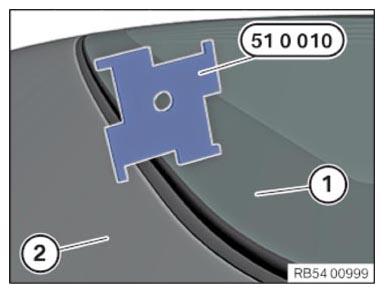

Gap dimension glass slide/tilt sunroof panel, rear, to roof outer skin 1 Glass slide/tilt roof panel, rear; 2 roof outer skin a 0.6 +0.75 -0.75 mm - Measure the height of the panorama glass roof lid (1) to the roof (2) with the special tool 0 495 259 (51 0 010) .
