Install the headlining (lowered with panorama roof)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The front seats have been fully adjusted towards the bottom.
The front seat backrests have been fully adjusted towards the rear.
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.

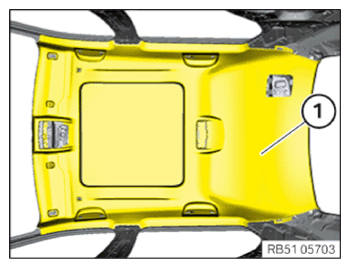

- Install the headlining (1)
and carefully insert it at the respective edge protection.

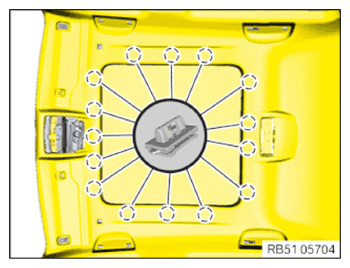

- Carefully engage the headlining on the clamps (1)
.
- Clip in the headlining (1)
using the clips (2)
.
- Clip in the frame (1) with the clips (2) .
- If necessary, attach the cable clip onto the frame (1)
.
Follow-up work
- Refer to INSTALLING THE BELT FEED TRIM .
- Refer to INSTALLING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS .
- Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
- Refer to INSTALLING THE ROOF FUNCTION CENTER .
- Refer to INSTALLING THE COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
- Refer to INSTALLING THE COVER ON THE INSIDE MIRROR .
- Refer to INSTALLING ALL GRAB HANDLES .
- Refer to INSTALLING THE TRIM PANEL FOR LEFT AND RIGHT THE LUGGAGE COMPARTMENT CAPPING .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING C-PILLAR TRIM PANEL AT BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING THE DOOR SILL COVER STRIP ON THE REAR LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
- Refer to INSTALLING TOOLKITS .
- Refer to INSTALLING THE EMERGENCY WHEEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
