Install luggage compartment wheel arch trim panel at left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

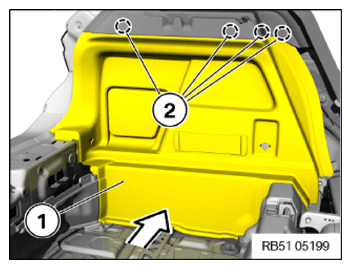

- Push the luggage compartment wheel arch trim panel (1) at the bottom in the direction of the arrow and thread it into the guides (2) and under the C-pillar trim panel at the bottom.
- Position the lashing points (3) and tighten the screws (2).TIGHTENING TORQUE SPECIFICATIONS
Lashing point in trunk Bolt M8 x 22 Tightening torque 21 Nm - Clip in the covers (1).
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
- Refer to INSTALLING TOOLKITS .
- Refer to INSTALLING THE EMERGENCY WHEEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
- Refer to INSTALLING TRIM PANEL FOR STORAGE SHELF (PARCEL SHELF) .
