Install roller sunblind

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

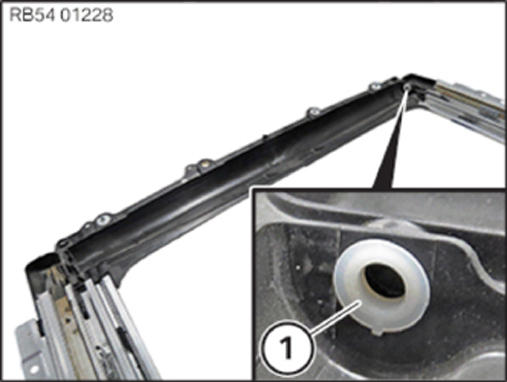

Replace the sleeve (1) .
Parts : sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

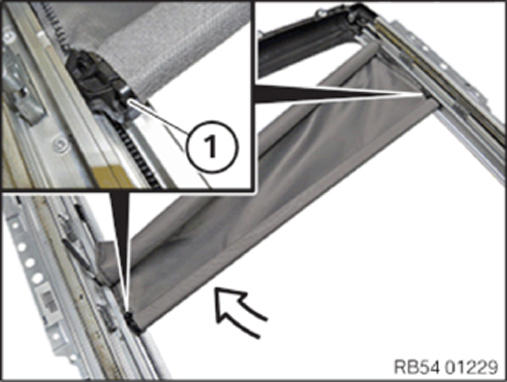

Hook the slider (1) in the frame.

Courtesy of BMW OF NORTH AMERICA, INC.

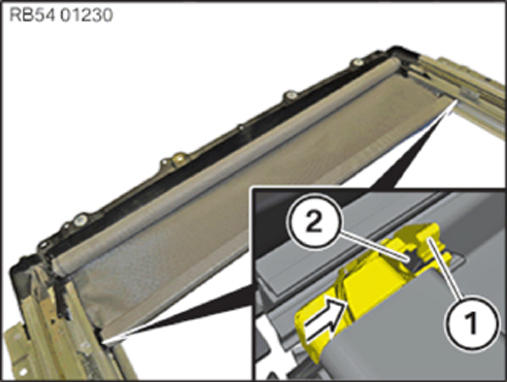

Snap-in the slider (1) to the rear in the driver (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

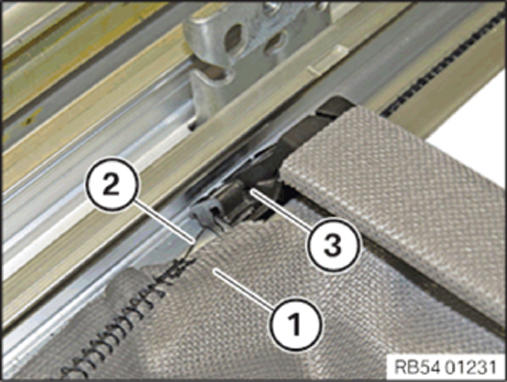

Make sure the roller sunblind (1) and cable linkage (2) do not get jammed by the slider (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

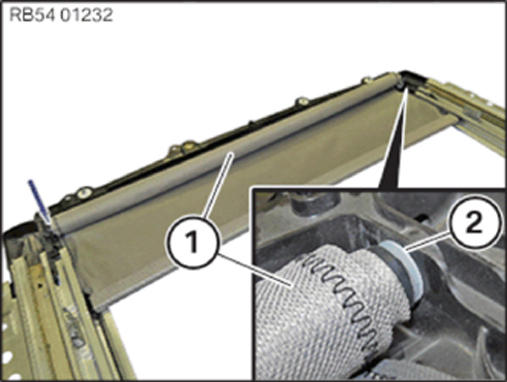

Insert the roller sunblind (1) in the sleeve (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

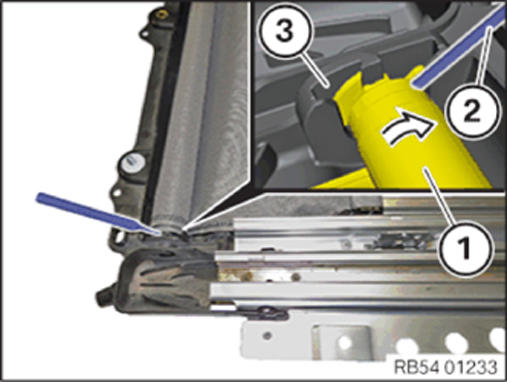

Insert the roller sunblind (1) with the holding fixture (2) in the mount (3) and snap it in arrow direction.
Remove the holding fixture (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING COMPLETE PANORAMA GLASS ROOF .
Refer to INSTALLING THE REAR PANORAMA GLASS ROOF LID .
Refer to INSTALLING THE FRONT PANORAMA GLASS ROOF PANEL .
Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
Refer to ADJUSTING REAR PANORAMA ROOF COVER .
Refer to ADJUSTING THE PANORAMA ROOF LID AT FRONT .
Refer to CHECKING THE ROLLER SUNBLIND AND THE GLASS ROOF FOR FUNCTION .
Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMA ROOF) .
Refer to INSTALLING THE BELT FEED TRIM .
Refer to INSTALLING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS .
Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
Refer to INSTALLING THE ROOF FUNCTION CENTER .
Refer to INSTALLING THE COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
Refer to INSTALLING THE COVER ON THE INSIDE MIRROR .
Refer to INSTALLING ALL GRAB HANDLES .
Refer to INSTALLING THE TRIM PANEL FOR LEFT AND RIGHT THE LUGGAGE COMPARTMENT CAPPING .
Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
Refer to INSTALLING C-PILLAR TRIM PANEL AT BOTTOM LEFT AND RIGHT .
Refer to INSTALLING THE DOOR SILL COVER STRIP ON THE REAR LEFT AND RIGHT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
Refer to INSTALLING TOOLKITS .
Refer to INSTALLING THE EMERGENCY WHEEL .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
Refer to INITIALIZING PANORAMA GLASS ROOF .
