24 00 023 Removing and installing automatic transmission (GA6HP26Z) (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil. See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS or DUAL-CLUTCH TRANSMISSION -- OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Clamp off battery . See 12 00... NOTES FOR DISCONNECTING AND CONNECTING BATTERY or 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove EXHAUST SYSTEM .
Remove heat shields
Remove FRONT PROPELLER SHAFT .
REMOVE propeller shaft from transmission.
Release center mount.
Note:
Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!
Tie up propeller shaft to underbody.
Support engine with lifter when removing transmission.

Unfasten nut.

Disconnect cable (1).

Installation note:

Unfasten nut.
Adjust cable by means of holder (2) until spacing A ≥ 1 mm is obtained.
Tighten nut.

Fig 1: Adjusting Cable
Courtesy of BMW OF NORTH AMERICA, INC.

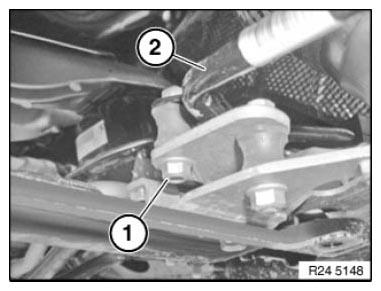

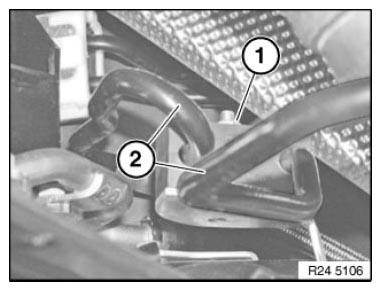

Slacken nut (1).

Detach line (2) from rubber mount.

Fig 2: Identifying Nut And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with Adaptive Drive:

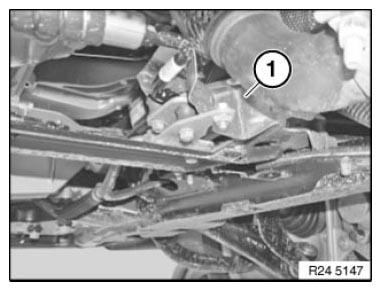

Remove guard plate (1).

Fig 3: Identifying Guard Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Detach line (2) with rubber mount from holder.

Fig 4: Identifying Nut And Line

Courtesy of BMW OF NORTH AMERICA, INC.

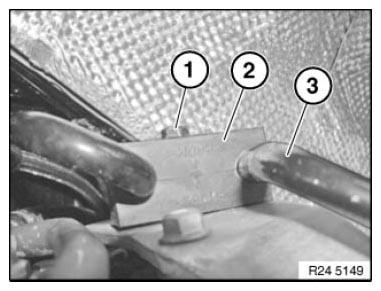

Release screw (1).

Detach rubber mount (2) with line (3) from holder.

Fig 5: Identifying Screw, Line And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

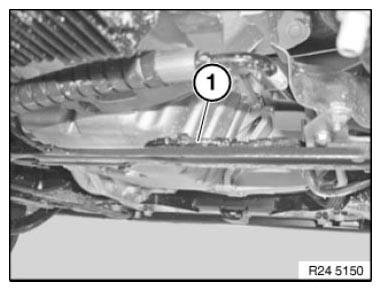

Detach line (1) from front axle.

Fig 6: Detaching Line From Front Axle

Courtesy of BMW OF NORTH AMERICA, INC.

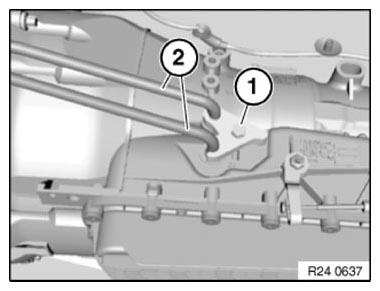

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Installation note:

Replace sealing rings.

Fig 7: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) by turning and disconnect
Release cable from brackets
Insert special tool 24 2 390 in sealing cup.

These tasks are described in NOTES ON MECHATRONICS .

(Important: Observe important note)

Fig 8: Turning Connector

Courtesy of BMW OF NORTH AMERICA, INC.

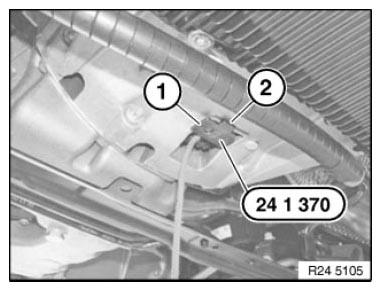

Insert special tool 24 1 370 into recess of transmission housing and secure with screw (1).

NOTE: Note installation position.

Lug (2) must point in opposite direction to direction of travel.

Fig 9: Inserting Special Tool 24 1 370 Into Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

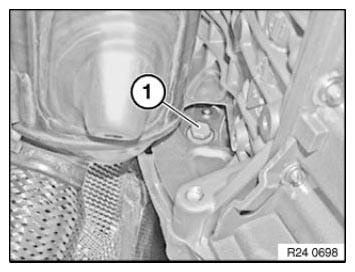

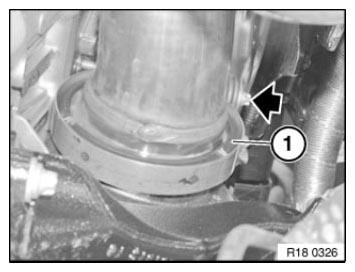

Release screw on exhaust turbocharger.

Tightening torque: 18 32 2AZ .

Remove V-clamp (1).

Installation note:

V-clamp must be replaced each time it is opened.

Replace gasket.

Fig 10: Locating Screw On Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

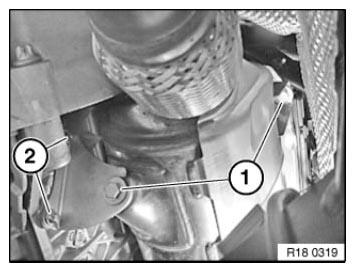

Release bolts (1) of the suspension diesel particulate filter.

Tightening torque: 18 20 2AZ .

Release screws (2) from holder and remove.

Tightening torque: 18 20 3AZ .

Lay diesel particulate filter to one side.

If necessary remove cable for oxygen sensor and exhaust-gas temperature sensor from holder.

Fig 11: Identifying Screws And Bolts Of Suspension Diesel Particulate Filter

Courtesy of BMW OF NORTH AMERICA, INC.

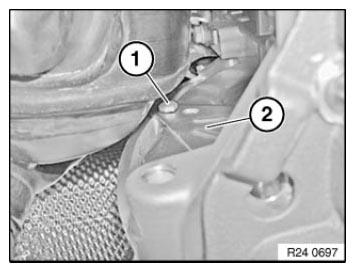

Release screw (1).

Remove panel (2).

Fig 12: Identifying Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at vibration damper with special tool 11 6 480 in direction of rotation until bolt (1) is visible in recess.

Release all 4 bolts of torque converter with special tool 24 1 110 .

Tightening torque: 24 40 1AZ .

Replace diesel particulate filter to initial position for lowering the gearbox. Do not screw.

Fig 13: Identifying Bolts Of Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

After completion of work, check transmission fluid level.

Fig 14: Securing Transmission To Mounting Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach connectors (1) and (2).

Fig 15: Identifying Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque: 22 32 4AZ .

Release screw (1).

Tightening torque: 22 32 5AZ .

Remove cross member.

Fig 16: Locating Screws Of Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage:
Before the transmission is unflanged, the entire assembly must be supported with a second jack!

Release screws.

Tightening torque: 24 00 1AZ .

Unflange transmission.

Fig 17: Locating Screws Of Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore hole (1) of driving plate must be accessible from recess on engine oil sump.

Fig 18: Identifying Bore Hole Of Driving Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Check that fitting sleeves are correctly fitted.

Replace damaged fitting sleeves.

Fig 19: Identifying Bore Hole In Torque Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rotate torque converter until bore hole in torque converter is flush with bore hole in driving plate.

Flange automatic transmission to engine.
