18 00 020 Removing and installing complete exhaust system (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Scalding hazard!
Only perform this work after engine has cooled down.
Risk of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Support exhaust system with lifter and special tool 31 2 220 .

Fig 1: Supporting Exhaust System Using Tool

G04742070

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque: 18 32 2AZ .

Fig 2: Locating Nut

G06913662

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove holder (1).

Tightening torque: 18 20 4AZ .

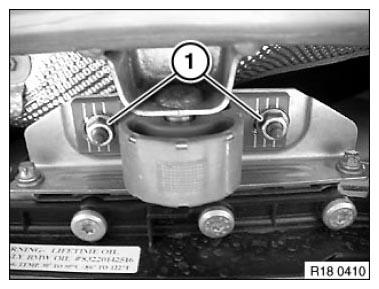

Fig 3: Identifying Screws Of Holder

G06913663

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove holder (1).

Tightening torque: 18 20 6AZ .

Fig 4: Locating Screws Of Holder

G06211017

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove bracket (1) with suppression line.

Tightening torque: 18 20 7AZ .

NOTE: Refer toFig 5, illustration shows the left side. The procedure is identical for the right side.

Lower exhaust system carefully.

Fig 5: Locating Screws Of Bracket

G06913660

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mount for damage, replace if necessary.

Check exhaust system for leaks.
