64 52 521 Removing and installing/replacing A/C system compressor (M57T2)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Danger of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for handling R 134a refrigerant . See 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A or 64 50... INSTRUCTIONS FOR HANDLING R 134A REFRIGERANT .
Avoid contact with refrigerant and refrigerant oil.
Follow safety information for HANDLING REFRIGERANT OIL .
Refrigerant circuit is under high pressure!
Follow safety instructions for handling R 134a refrigerant . See 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A or 64 50... INSTRUCTIONS FOR HANDLING R 134A REFRIGERANT .
Avoid contact with refrigerant and refrigerant oil.
Follow safety information for HANDLING REFRIGERANT OIL .
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
READ AND COMPLY WITH NOTES ON COMPRESSOR REPLACEMENT .
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If air conditioning system is opened for more than 24 hours:
REPLACE DESICCANT INSERT FOR A/C SYSTEM
Restart engine only when A/C system has been correctly filled.
READ AND COMPLY WITH NOTES ON COMPRESSOR REPLACEMENT .
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If air conditioning system is opened for more than 24 hours:
REPLACE DESICCANT INSERT FOR A/C SYSTEM
Necessary preliminary tasks:
- DRAWING OFF, EVACUATING AND FILLING THE A/C SYSTEM are not included in the time value given for this work operation
- Remove A/C compressor drive belt . See 11 28 050 REMOVING AND INSTALLING/REPLACING DRIVE BELT (ELASTOBELT) FOR A/C COMPRESSOR (M57TU/M57T2) or 11 28 050 REMOVING AND INSTALLING/REPLACING THE DRIVE BELT (ELASTOBELT) FOR THE AIR CONDITIONING COMPRESSOR (M57T2-SCR)
- Remove clean air pipe . See 13 71 150 REMOVING CLEAN AIR PIPE (M57T2) or 13 71 150 REMOVE THE CLEAN AIR PIPE (M57T2 WITH AND WITHOUT SCR)
- Remove right pressure pipe
- Remove STEERING GEAR COVER at bottom right

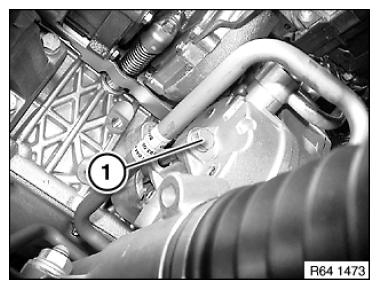

Release screw (1).
Tightening torque: 64 52 3AZ .

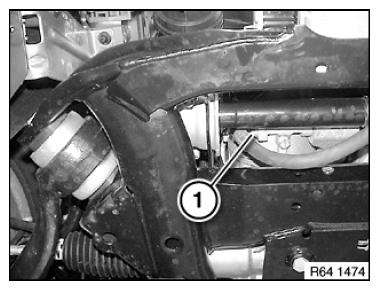

Release screw (1).
Tightening torque: 64 52 3AZ .
IMPORTANT:
Seal openings or lines on compressor with special tool 32 1 270
to prevent escape of media and fouling.
NOTE:
Secure compressor (5) against falling out.
First release screw (1) and remove refrigerant line.
Release screw (2) and remove refrigerant line.
Tightening torque: 64 52 1AZ .
Installation note:
Replace sealing rings.
Use special tool 00 9 030 to mount sealing rings without damaging them.

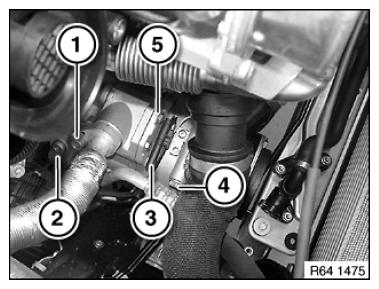

Disconnect plug connection (3).
Release screw (4) and feed out compressor (5) towards top.
Tightening torque: 64 52 3AZ .
After installation:
