13 71 150 Remove the clean air pipe (M57T2 with and without SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .

Release the clamp on the hot film air mass meter.

Pull off hose.

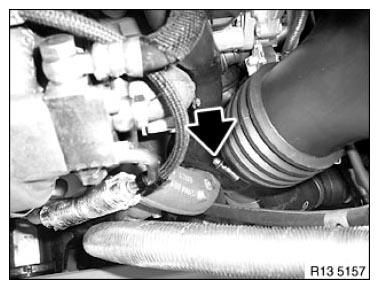

Fig 1: Locating Clean Air Pipe Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clamp.

Remove clean air pipe.

Reassemble the vehicle.

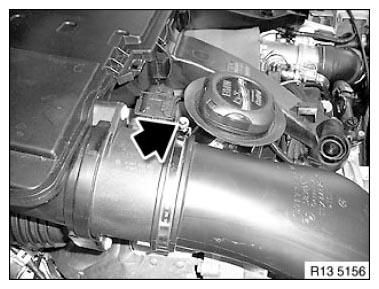

Fig 2: Locating Clean Air Pipe Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
