13 71 150 Removing clean air pipe (M57T2)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .

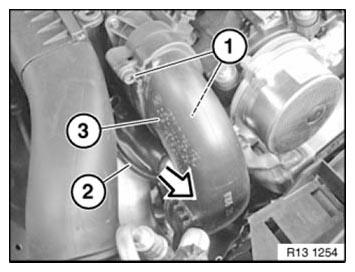

Release bolts (1).
Unclip line (2).
Detach intake pipe (3) in direction of arrow.
Installation:
Check gaskets and replace if necessary.
