Install heat management module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

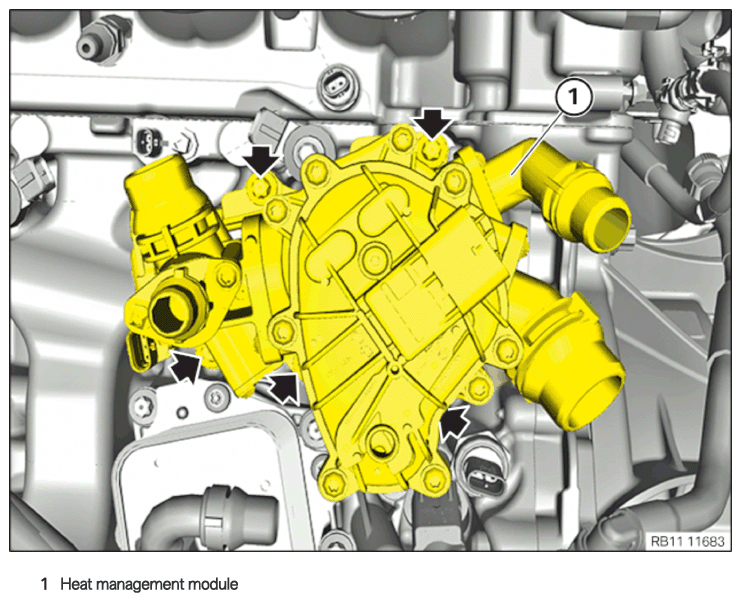

Heat management module

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

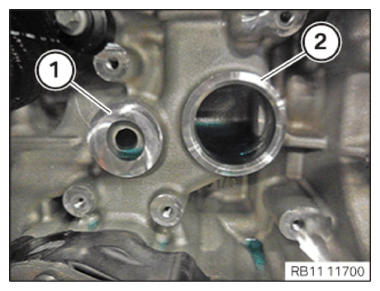

Clean sealing surfaces (1) and (2) on crankcase with special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the sealing rings (1) and (2).
Parts: Sealing ring

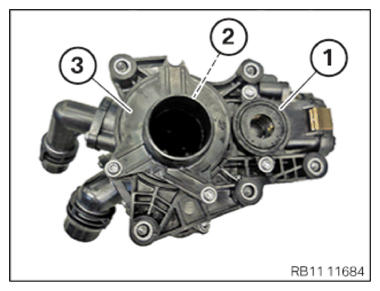

Feed in new sealing rings (1) and (2) at heat management module (3) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

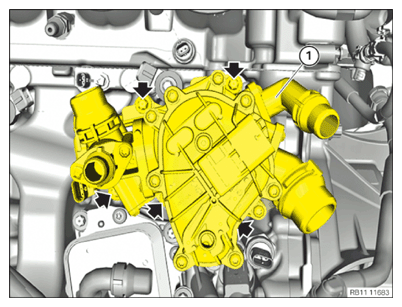

Feed in heat management module (1) and install.
Tighten screws (arrows) evenly.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Heat exchange module to crankcase
M6	Tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

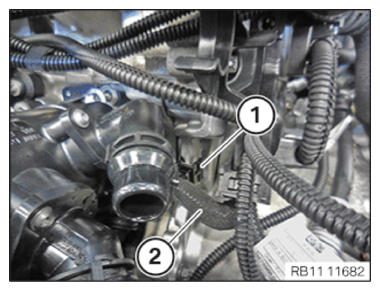

Insert and install the engine wiring harness (2).
Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

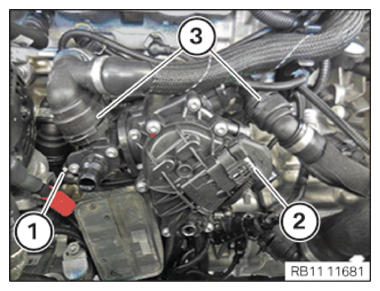

Connect and lock the connector (1).
Connect and lock the connector (2).
Make sure that the connector (1) and (2) engages audibly.
Connect and lock the coolant lines (3).
Ensure that coolant lines (3) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CONNECTING COOLANT LINE .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
Refer to CONNECTING THE BATTERY EARTH LEAD .
Refer to AIR BLEEDING THE COOLANT CIRCUIT .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
