51 11 157 Replace bumper panel, front
Necessary preliminary tasks:
- Remount the MIDDLE FRONT RADIATOR GRILLE
- Remount ORNAMENTAL GRILLE FOR BUMPER PANEL (CENTER)
- Remount ORNAMENTAL GRILLE FOR BUMPER PANEL (SIDE)
- Remount SUPPORT FOR NUMBER PLATE
- Attach BMW BADGE
- Remount FIXTURE FOR FOG LIGHT
Depending on version:
- Refer to: PUNCHING HOLES FOR PDC/PMA/SIDE VIEW CAMERA
- Install HOLDER FOR PDC/PMA/SIDE VIEW CAMERA
- Remount FOG LIGHT
- Remount HIGH-PRESSURE NOZZLES and hose pipe
- Remount ULTRASONIC SENSOR and wiring harness
- Remount SIDE VIEW CAMERA

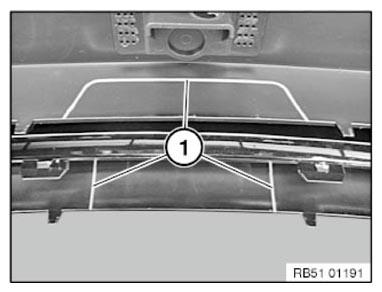

Version with ACC:
Saw out bumper panel along mark (1).

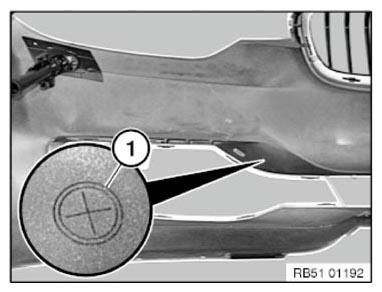

Luxury Line model:
Drill bumper panel at mark (1).
