51 11... Punching holes in the bumper panel

Special tools required:

• 2 334 053
• 2 359 747

Punching holes is described here using an ultrasonic sensor in the F20.

The versions in which the holes must be punched can be found in the Applicable BMW parts catalogue.

Depending on the equipment specification, holes and holders of the ultrasonic sensors for the Park Distance Control (PDC)/Park Maneuvering Assistant (PMA) and side view camera or front camera must be added later.

To punch holes, use special tool 2 334 053.

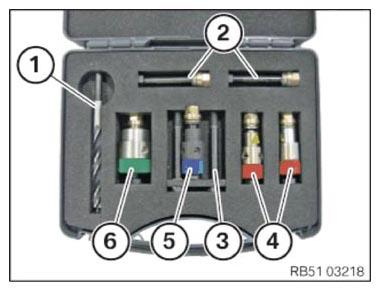

Overview of special tools:

Courtesy of BMW OF NORTH AMERICA, INC.

(1)	Drill bit
(2)	Replace screws and nuts	83 30 2 334 067
(3)	Punching guide fork	83 30 2 334 065
(4)	Punching tool Ø 18 mm	83 30 2 334 055
(5)	Punching tool Ø 17.6 mm (Front camera)	83 30 2 359 747 (Not included in set 2 334 053)
(6)	Punching tool Ø 32 mm (F20 ultrasonic sensor, front, inner)	83 30 2 334 059
(7)	Punching tool Ø 33 mm (F30, life cycle impulse)	83 30 2 463 684 (Not included in set 2 334 053)

In equipment specifications with PMA and  side view camera, both punching tools (4) must be used with the punching guide fork (3). This is the only way to achieve the correct hole spacing.

In equipment specifications with PMA or  side view camera, insert the appropriate component into the holder before punching and in this way determine the hole that needs to be punched.

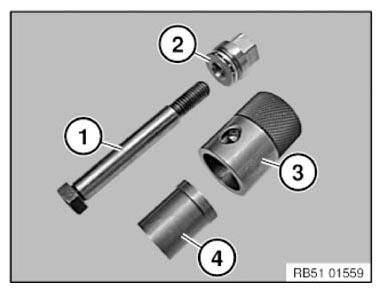

1. Screw.
2. Nut.
3. Die plate.
4. Stamp.

Check the punching tool for damage before using, and replace any defective parts.

The shaft of the bolt (1) must be lightly oiled.

Courtesy of BMW OF NORTH AMERICA, INC.

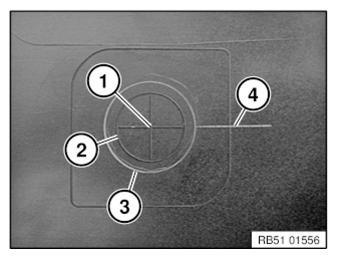

Drill bumper panel centrally at mark (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

To avoid damaging the bumper panel, always punch from the outside to the inside.

1. View from inside.
2. View from outside.

Insert die plate (1) and stamp (2) with the bolt and nut.

Align die plate (1) to mark (3) and tighten the tool hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

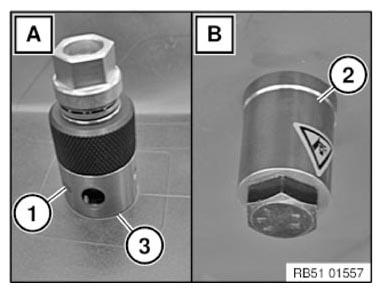

Check the position of the die plate (1) at mark (3) and correct it if necessary.

Punch out the hole by turning the nut while holding the bolt.

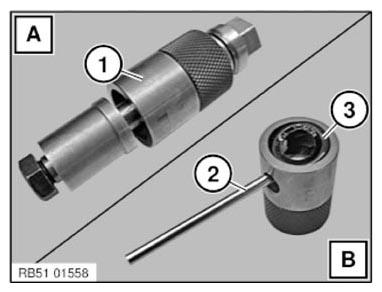

Disassemble special tool (1).

Attention!

Risk of damage to tool!

Introduce a suitable tool (2) through the lateral hole and pry out the punching remnant (3).

Courtesy of BMW OF NORTH AMERICA, INC.
