51 11... Replace the holder for the PDC/PMA/side view camera

Necessary preliminary work:

• If necessary, remove the SIDE VIEW CAMERA or ULTRASONIC SENSOR

Observe NOTES  for bonding with adhesive tape.

The description of the work uses the example of a PDC holder.

If necessary, completely remove the faulty holder and adhesive residue.

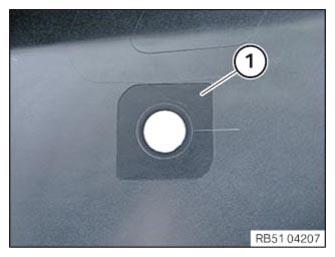

Lightly sand the adhesive area (1) with sandpaper.

Clean the adhesive area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

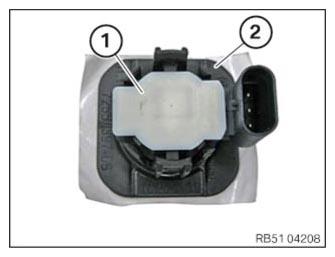

Insert the ultrasonic sensor (1) in the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

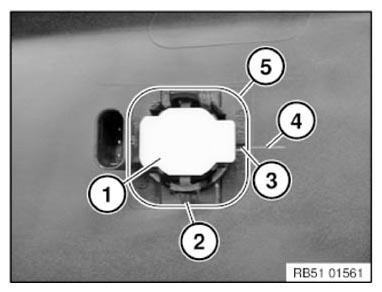

Mount holder (2) according to its installation position. Note the label on the holder (2).

Align the visible notch (3) with the mark (4) and bond the holder (2) with the integrated ultrasonic sensor (1).

Fasten the holder (3) on the bumper panel in the area (5) on all sides with the ADHESIVE KIT K6 .

Courtesy of BMW OF NORTH AMERICA, INC.
