66 53 030 Removing and installing/replacing side view camera on left or right

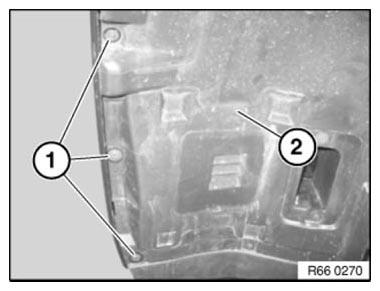

Release screws (1).

Fold wheel arch panel (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

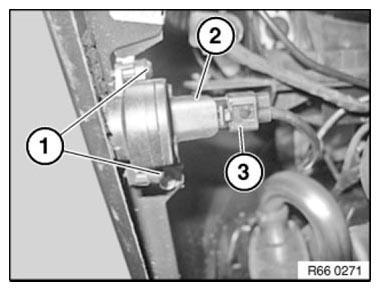

Release screws (1).

Remove side view camera (2).

Unfasten plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING.

Carry out the service function:

• Driver assistance
• All-round vision camera
• All-round vision camera programming
