11 65 020 Removing and installing/replacing exhaust turbocharger (B48AO0)

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down .

CAUTION: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Drain COOLANT .
Remove the CATALYTIC CONVERTER .
Remove OIL FEED LINE
Remove COOLANT RETURN LINE .
Release COOLANT FEED LINE on exhaust turbocharger.
Remove OIL RETURN LINE .
Partly remove WHEEL ARCH COVER .

Removal:

Release expanding rivet and remove mounting for gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

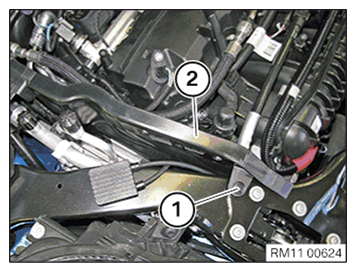

Release screw and remove tension strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

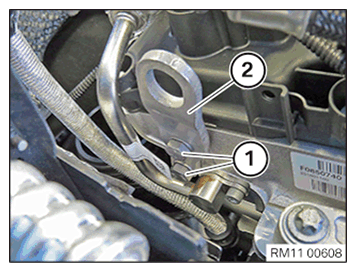

Release screws (1).

Remove securing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

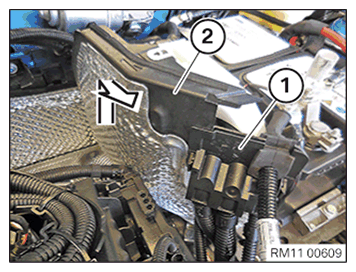

Release wiring harness (1) from partition wall (2).

Remove partition wall (2) upwards and in front direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivet (1).

Remove partition wall (2).

Courtesy of BMW OF NORTH AMERICA, INC.

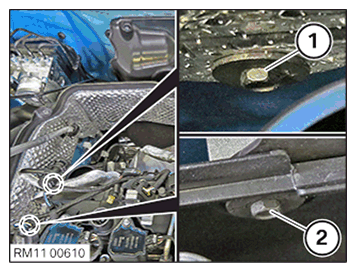

Release screws (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

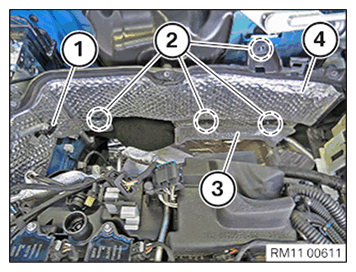

Unclip fuel delivery line (1).

Unscrew nuts (2).

Slightly bend heat shield (3) towards front.

Remove partition wall (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Remove heat shield (3).

Courtesy of BMW OF NORTH AMERICA, INC.

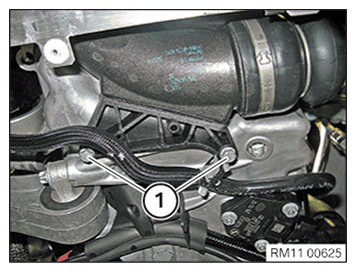

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock (1) on both sides with suitable tool.

Pull off charge air duct (2) from exhaust turbocharger (3).

Courtesy of BMW OF NORTH AMERICA, INC.

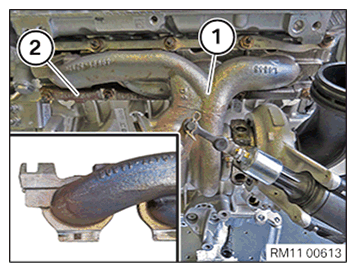

CAUTION: Exhaust manifold/exhaust turbocharger (1) is not bolted to the underside, but clamped instead.
The clamping strip (2) remains bolted when the exhaust manifold/exhaust turbocharger (1) is removed/exchanged.
Only the upper bolting connection has to be released.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure exhaust manifold/exhaust turbocharger against falling.

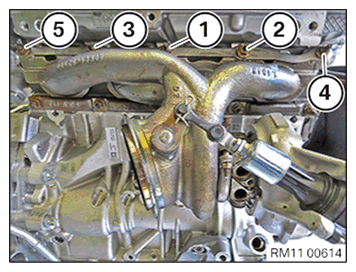

Release upper bolting connection in sequence (5 - 1 ).

Fig 1: Exhaust Manifold/Exhaust Turbocharger Nuts Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

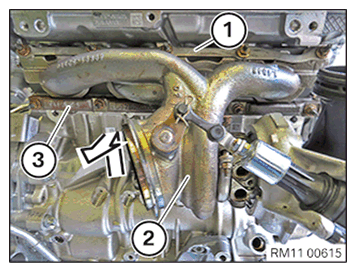

Remove reinforcement plate (1).

Feed out exhaust manifold/exhaust turbocharger (2) from clamping strip (3) upwards and in rear direction.

Courtesy of BMW OF NORTH AMERICA, INC.

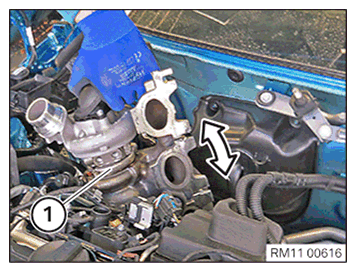

Lift out exhaust manifold/exhaust turbocharger (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Installation note:

Risk of damage to the exhaust turbocharger!

An insufficient initial filling of the exhaust turbocharger leads to dry running.

While replacing the exhaust turbocharger, it is mandatory to ensure that the initial filling is correctly carried out.

Filling the exhaust turbocharger with the appropriate additive (see appropriate BMW parts catalogue).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The following components must be checked before installation of the exhaust manifold/exhaust turbocharger:
Engine oil and coolant and screw connection: Check supply and return lines for dirt contamination and obstructions, clean and replace if necessary.
Check air filter for dirt contamination (particles) and replace if necessary.
In the case of heavy dirt contamination on supply and return lines it is recommended to change the engine oil with oil filter.
Check correct functioning of crankcase ventilation.
Replace all gaskets.

Parts: Replace seal (1).

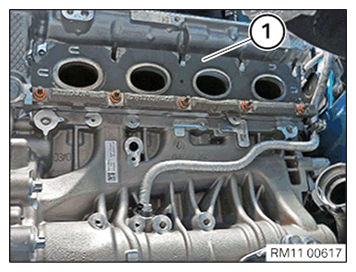

Install gasket (1) on cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in exhaust manifold/exhaust turbocharger (1) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

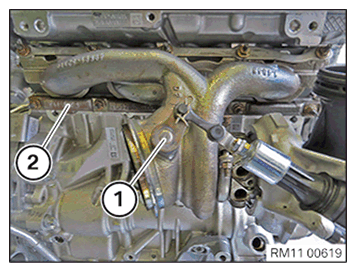

Feed in exhaust manifold/exhaust turbocharger (1) downwards into the clamping strip (2) and bring in contact with cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

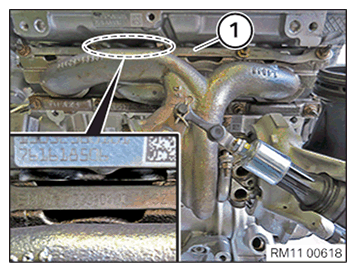

NOTE: Reinforcement plate (1) can be installed improperly.
Original BMW - part number needs to be legible from the rear.

Mount reinforcement plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Observe tightening specifications.

Screw in nuts and tighten in sequence (1 - 5 ).

Tightening torque: 11 62 2AZ .

Fig 2: Exhaust Manifold/Exhaust Turbocharger Nuts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

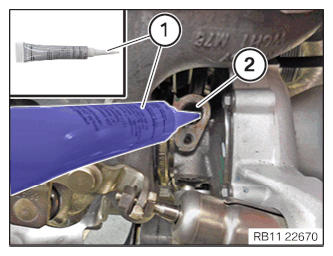

Fill the exhaust turbocharger additive (1) into the bore hole (2) of the oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

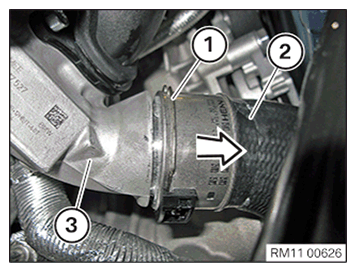

Connect charge air duct (1) to exhaust turbocharger (2) until lock (3) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

Position charge air duct and tighten screws (1).

Tightening torque 11 00 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install heat shield (3).

Tighten screw (1).

NOTE: Position screw (2) until it abuts and do not tighten.
Only tighten screw (2) when all the other heat shields are installed.

Courtesy of BMW OF NORTH AMERICA, INC.

Install partition wall (4).

Attach heat shield (3).

Tighten down nuts (2).

Attach fuel delivery line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install partition wall (2) and secure with expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

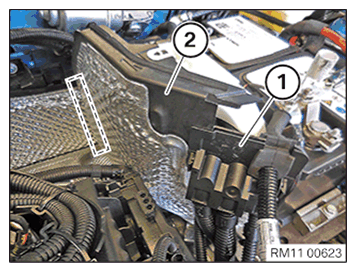

NOTE: Make sure the partition wall (2) is installed properly in the marked area.

Install partition wall (2).

Attach wiring harness (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Join tension strut (1) and tighten with screws.

Tightening torque 61 21 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Join mounting for gasket (1) and secure with expanding rivet.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install front right WHEEL ARCH COVER .
Install OIL RETURN LINE .
Install COOLANT FEED LINE .
Install COOLANT RETURN LINE .
Install OIL FEED LINE .
Install the CATALYTIC CONVERTER .
Top up COOLANT .
