18 32 050 Removing and installing/replacing catalytic converter

WARNING: Risk of burning!
Only perform this repair work after the exhaust system has cooled down.

Necessary preliminary work:

Clamp off NEGATIVE BATTERY LEAD .
Remove CONSOLE FOR WINDSCREEN WASHER SYSTEM .
Remove OXYGEN SENSOR .
Remove MONITORING SENSOR .
Remove front UNDERBODY PROTECTION .
Remove EXHAUST SYSTEM .
Remove PROPELLER SHAFT .

Removal:

If fitted: Removing differential pressure sensor for the fuel particulate filter.

Carefully unlock the latch mechanisms (1).

Feed out cover (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Detach pressure hose (2).

Release screw (3).

Feed out and remove the differential pressure sensor (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber mounts (1) from the catalytic converter.

Check rubber mount. Replaced damaged rubber mounts.

Parts: Rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.

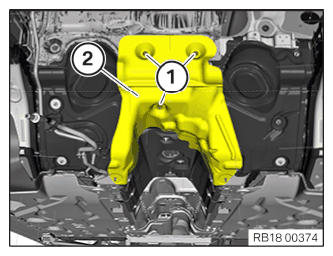

Loosen screws (1).

Feed out heat shield (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

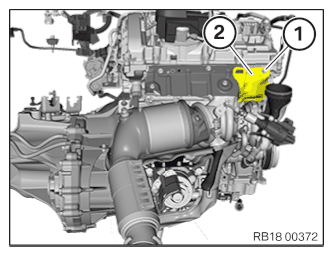

Slacken nut (1).

Feed out heat shield (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

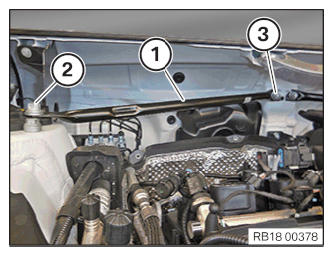

Unscrew nut (3).

Release screw (2).

Remove strut brace (1).

Courtesy of BMW OF NORTH AMERICA, INC.

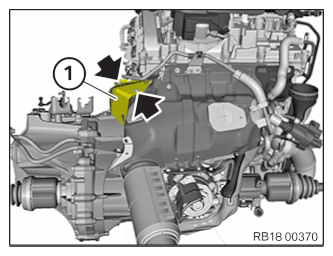

Loosen the screws along the arrows.

Feed out heat shield (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

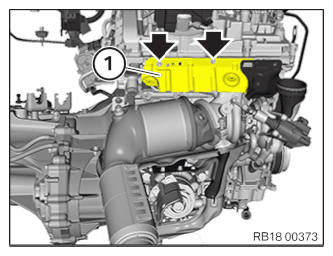

Loosen the screws along the arrows.

Feed out heat shield (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

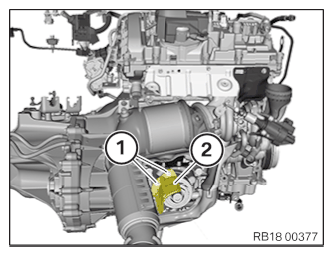

Release screw (1).

Do not remove heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

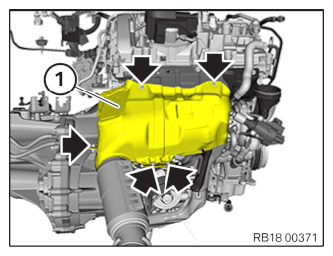

Loosen the screws along the arrows.

Feed out heat shield (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on the left of the catalytic converter.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1). The clamp must be replaced every time it is removed.

If necessary, replace clamp.

Parts: Clamp.

Clean sealing surface.

Release catalytic converter (2) from exhaust turbocharger and place to side.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out catalytic converter (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Replace gasket (1) on catalytic converter.

Parts: Gasket.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in catalytic converter (1) from the top and place on the front axle.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount catalytic converter (2) on exhaust turbocharger and holder.

Tighten clamp (1).

Tightening torque 18 30 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Tightening torque 18 30 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install heat shield (2).

Tighten down screws (1).

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install heat shield (2).

Tighten nut (1).

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect rubber mount (1) to catalytic converter.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install heat shield (1).

Tighten screws along arrows.

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install heat shield (1).

Tighten screws along arrows.

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install heat shield (1).

Tighten screws along arrows.

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install strut brace (1).

Tighten nut (3).

Tightening torque 51 61 2AZ .

Tighten screw (2).

Tightening torque 51 61 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted: Install differential pressure sensor for the fuel particulate filter.

Feed in and install the differential pressure sensor (4).

Tighten screw (3).

Tightening torque 13 62 7AZ .

Replace pressure hose (2).

Parts: Pressure hose

Connect the pressure hose (2) with the differential pressure sensor (4).

Connect and lock the connector (1).

The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cover (2).

Lock latch mechanisms (1).

The latch mechanisms (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install OXYGEN SENSOR.
Install MONITORING SENSOR.
Install EXHAUST SYSTEM .
INSTALL PROPELLER SHAFT.
Install front UNDERBODY PROTECTION .
Install CONSOLE FOR WINDSCREEN WASHER SYSTEM .
Connect NEGATIVE BATTERY LEAD .
