11 53 086 Removing and installing/replacing coolant feed line for exhaust turbocharger (B48AO0)

Special tools required:

• 17 2 050

Necessary preliminary tasks:

• Drain COOLANT .
• Remove the CATALYTIC CONVERTER .
• Remove COOLANT RETURN LINE .

Removal:

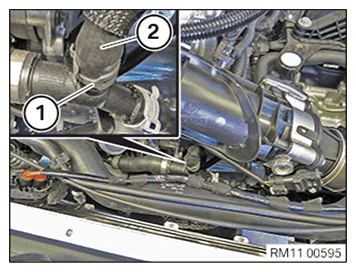

Unlock clamp (1) by means of special tool 17 2 050.

Pull off coolant line (2) of T-piece.

Courtesy of BMW OF NORTH AMERICA, INC.

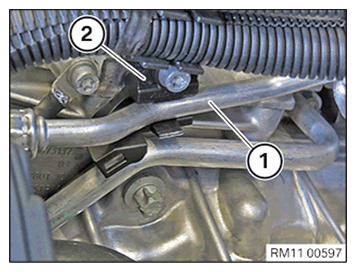

Release coolant line (1) from holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

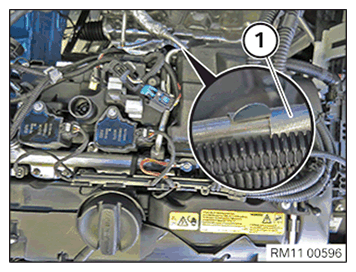

Release coolant line (1) at clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

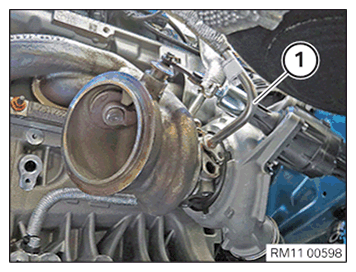

Pull off coolant line (1) of exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

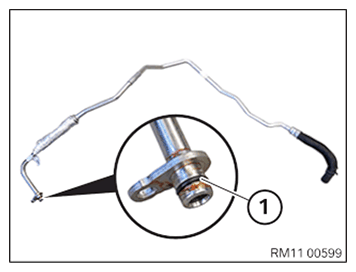

Parts:  Replace O-ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install coolant line (1) and connect to exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock clamp (1) by means of special tool 17 2 050.

Connect coolant line (2) to T-piece.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip coolant line (1) into holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in coolant line (1) into clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install COOLANT RETURN LINE .
• Install the CATALYTIC CONVERTER .
• Top up COOLANT .
• Check cooling system for leaks.
