41 34 041 Stripping-Down Operations - Replacing Complete Tail Panel (Non-Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Disconnect negative battery cable (61 20 900 )
Remove bumper trim (51 12 156 )
Remove bumper carrier (51 12 050 )
Remove center guide (51 12 825 )
Remove guide for bumper on left and right (51 12 828 )
Remove luggage compartment floor trim panel (51 47 101 )
Upper tail panel trim (51 46 050 )
Remove left luggage compartment wheel arch panel (51 47 151 )
Remove right luggage compartment wheel arch panel (51 47 161 )
Remove striker for rear lid (51 24 130 )
Remove both rear lights (63 21 180 )
Partially detach tailgate seal

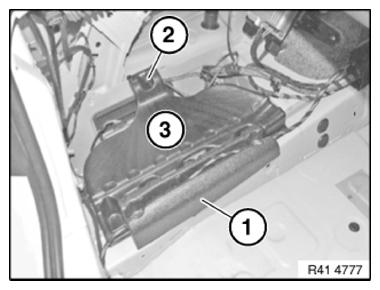

Remove cable holder (1).

Lever out expander rivet (2) and remove padding (3).

Fig 1: Identifying Padding, Cable Holder, Expander Rivet

G09916308

Courtesy of BMW OF NORTH AMERICA, INC.

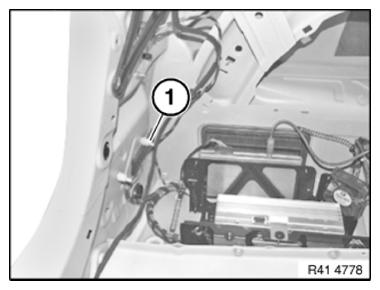

Release nut (1) and remove earth support point. Tightening torque 41 34 2AZ .

Repeat work on right-hand side of vehicle.

Fig 2: Identifying Earth Support Point Nut

G09916309

Courtesy of BMW OF NORTH AMERICA, INC.

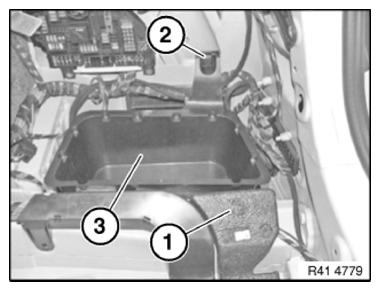

Remove insert (1).

Lever out expanding rivet (2) and remove storage compartment (3).

Fig 3: Identifying Expanding Rivet And Storage Compartment

G09916310

Courtesy of BMW OF NORTH AMERICA, INC.

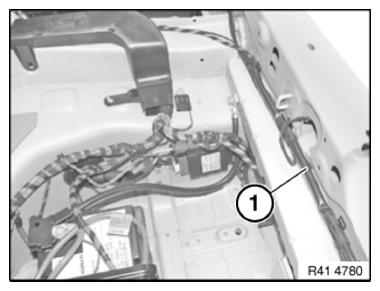

Release wiring harness (1) and place to one side.

Fig 4: Identifying Wiring Harness

G09916311

Courtesy of BMW OF NORTH AMERICA, INC.

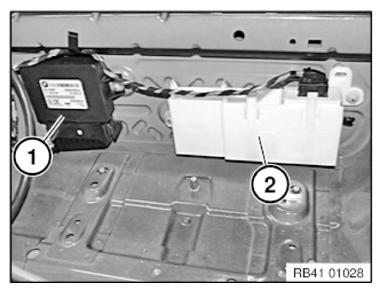

Release nuts for control unit (1) and holder (2).

Release plug connections and remove holder and control units.

Fig 5: Identifying Control Unit Nuts And Holder

G09916312

Courtesy of BMW OF NORTH AMERICA, INC.
