54 12 646 Replace glass slide/tilt sunroof frame

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

With F01/F02 up to version 03/2014, an conversion is made from a slide/tilt sunroof with controlled wind deflector to a wind deflector which is not controlled.

Install new WIND DEFLECTOR .

Program the slide/tilt sunroof conversion in the vehicle. Perform conversion with ISTA/P. ("Conversion for slide/tilt sunroof replacement")

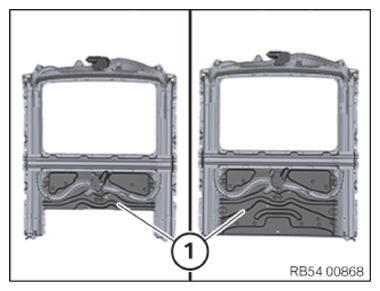

NOTE: With F01 up to version 03/2014, a conversion is made from a slide/tilt sunroof with short frame shelf (1) to a long frame shelf (1).

Fig 1: Identifying Slide/Tilt Sunroof With Short Frame Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The slide/tilt sunroof frame is supplied with or without mounted parts depending on the version.

Remount the following parts depending on the version:

Required follow-up work:

Install GLASS SLIDE/TILT SUNROOF .
Install SLIDING ROOFLINER .
Install GLASS SLIDE/TILT SUNROOF PANEL .
