54 12 136 Removing and installing/replacing sliding trim for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLASS SLIDE/TILT SUNROOF PANEL .
Close sliding trim completely

Release screws (1).

Tightening torque 54 12 03AZ .

Remove sliders from guide rail.

Installation note:

Make sure rubber lugs are correctly seated on sliders.

Remove sliding trim towards front.

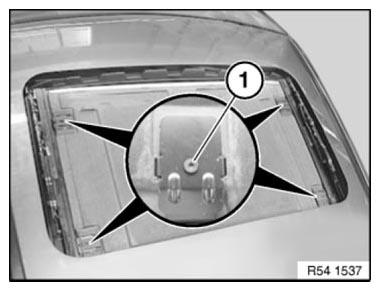

Fig 1: Identifying Guide Rail Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert front slider correctly into driver (drive cable).

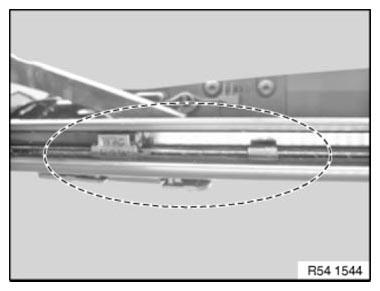

Fig 2: Inserting Front Slider Into Driver (Drive Cable)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If sliding trim is difficult to move, apply a light coat of Renolit RHF1 (manufactured by Fuchs) to guide duct.
