54 12 497 Removing and installing/replacing wind deflector for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Completely open glass slide/tilt sunroof panel.

IMPORTANT: Risk of damage to surrounding gasket and stopper (2).

Insert special tool 00 9 327 between seal and stopper (2) to protect seal from damage.

Press wind deflector (1) on left and right towards inside to detach stopper (2).

Installation note:

Lift stopper (2) with special tool 00 9 327 over seal.

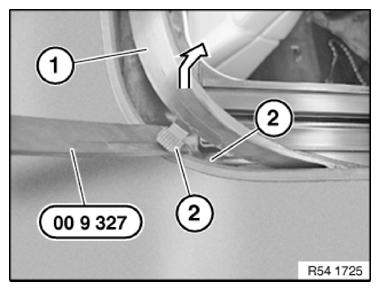

Fig 1: Inserting Special Tool 00 9 327 Between Seal And Stopper

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 00 9 341 between seal and limit position to protect seal from damage.

Press wind deflector (1) towards inside to detach limit position (2).

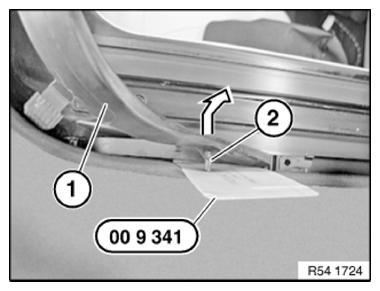

Fig 2: Inserting Special Tool 00 9 341 Between Seal And Limit Position

Courtesy of BMW OF NORTH AMERICA, INC.

Fold over wind deflector and remove in upward direction from wind deflector bearing.

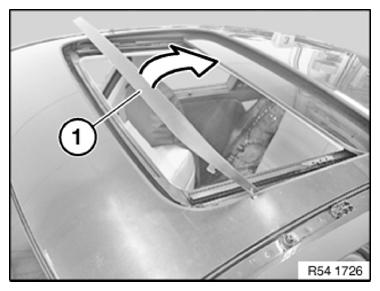

Fig 3: Removing Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.
