54 12 499 Replacing seal for glass slide/tilt sunroof frame
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove complete GLASS SLIDE/TILT SUNROOF (FRAME) .
Version up to 03/2014:
Detach seal (1) from glass slide/tilt sunroof (2).
Installation note:
Groove of seal must point outwards.
Place gasket gently in position and align limit points parallel to each other.
Press seal (1) firmly on frame (2) and ensure correct seating.
Version after 03/2014:

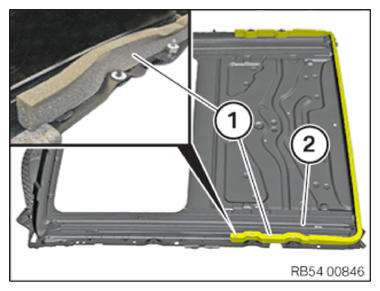

Loosen sealing (1) from frame (2).
Observe NOTES for securing components with adhesive tape.
Remove adhesive residue.
Installation note:
Clean the adhesive area.
Bond sealing (1) to frame (2)
