63 21 183 Removing and installing/replacing left or right rear light (on rear lid)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID
Remove TAILGATE COVER
Remove REAR-END TRIM

Carefully lever out clip (1) from rear light cover (2).

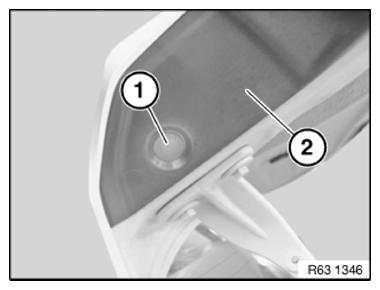

Fig 1: Identifying Rear Light Cover And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 4AZ .

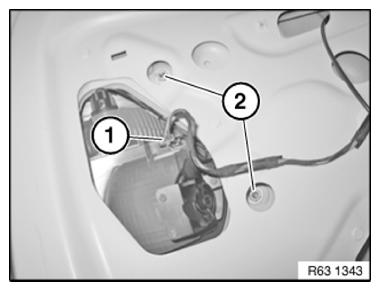

Fig 2: Identifying Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear light (1) in direction of arrow.

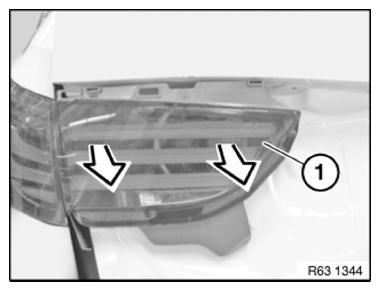

Fig 3: Removing Tail Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Note BULB TYPE .

If necessary, replace REAR LIGHT COVER .
