51 13 416 Removing and installing/replacing rear lid trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Trim must be carefully unclipped due to risk of damage.

Grip trim (1) in center and unclip at points (2).

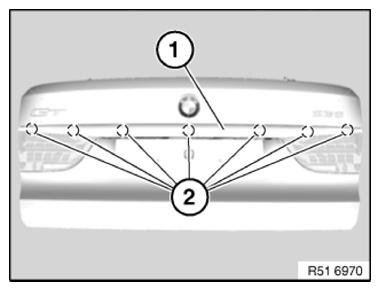

Fig 1: Identifying Rear Lid Trim
G09879020Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

  1. Clips
  2. Clip bracket

If necessary, replace faulty parts.

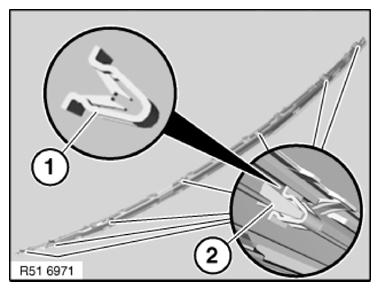

Fig 2: Identifying Clips And Bracket
G09879021Courtesy of BMW OF NORTH AMERICA, INC.
