63 21... Removing and installing/replacing trim for rear light on left or right
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LEFT REAR LIGHT

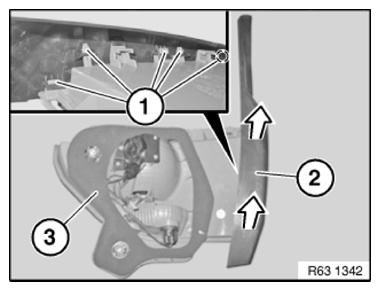

Carefully unclip retaining lugs (1).
Remove trim (2) from rear light (3) in direction of arrow.
Installation:
- Retaining lugs (1) must not be damaged
- Ensure trim (2) is seated correctly.
