51 49 000 Removing and installing/replacing bottom tailgate trim panel tailgate

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHTS

Disengage emergency release mechanism (4).

Release screws (1).

Tightening torque 51 49 1AZ .

Release trim panel (3) from clamps (2).

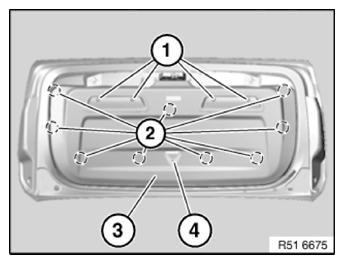

Fig 1: Identifying Trim Panel From Clamps And Screws

G09879683

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (2) on trim panel (1).

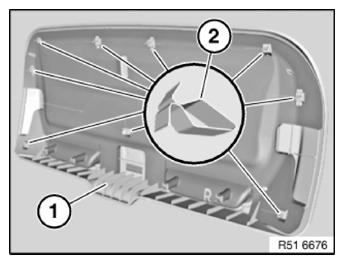

Fig 2: Identifying Faulty Clamps On Trim Panel

G09879684

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only

Remount sound insulation (1).

Watch for guide (2) and bracket (3).

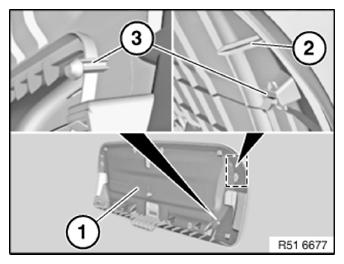

Fig 3: Identifying Sound Insulation, Guide And Bracket

G09879685
