51 13 400 Removing and installing or replacing rear center trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove number plate.

NOTE: Detaching rear center trim is shown on the left side; proceed in same way for detaching on the right side.

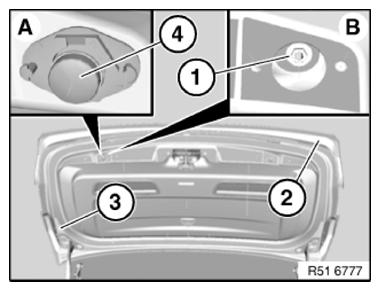

Remove stop pad (4) on tailgate (3).

Undo nut (1) on rear decorative trim (2).

Tightening torque 51 13 1AZ .

Fig 1: Identifying Stop Pad On Tailgate, Nut And Rear Decorative Trim

G09878997

Courtesy of BMW OF NORTH AMERICA, INC.

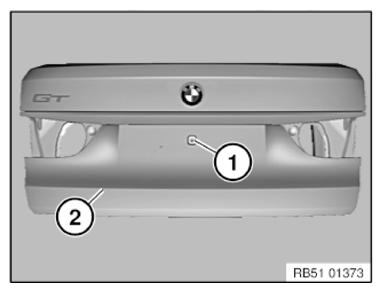

Undo screws (1) on rear decorative trim (2).

Fig 2: Identifying Screws On Rear Decorative Trim

G09878998

Courtesy of BMW OF NORTH AMERICA, INC.

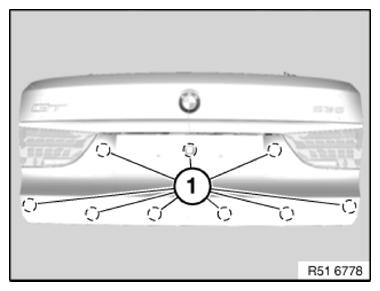

Unclip plastic clips (1) with tailgate opened.

Remove complete rear trim.

Fig 3: Identifying Plastic Clips

G09878999

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

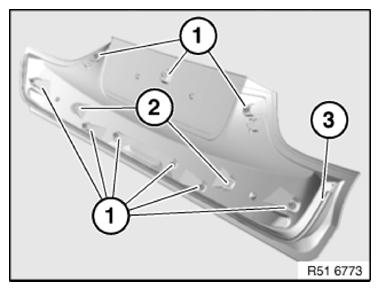

If necessary, replace faulty plastic clips (1).

If necessary, replace faulty gasket (3).

If necessary, replace faulty screw clamp (2).

Fig 4: Identifying Plastic Clips, Gasket And Screw Clamp

G09879000

Courtesy of BMW OF NORTH AMERICA, INC.
