52 26 038 Removing and installing/replacing left rear seat frame

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE backrest frame.
REMOVE LEFT BACKREST COVER .

Lift off cover (1).

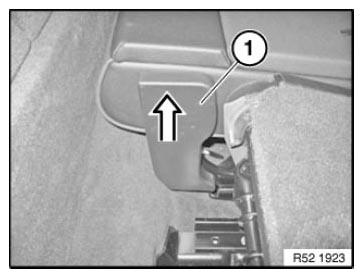

Fig 1: Lifting Seat Backrest Cover

G08487025

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 2AZ .

Fig 2: Identifying Rear Seat Frame Screws

G08487051

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plate (1).

Release screw (2).

Tightening torque 52 26 8AZ .

Remove trim (3) in direction of arrow.

Fig 3: Removing Left Rear Seat Backrest Frame Trim

G08486953

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 8AZ .

Remove trim in direction of arrow.

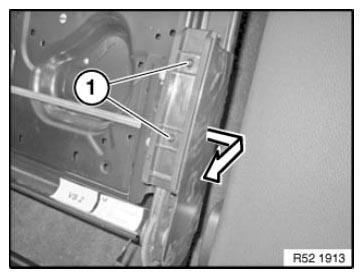

Fig 4: Removing Left Rear Seat Backrest Frame Trim

G08486954

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 4AZ .

Lift out backrest.

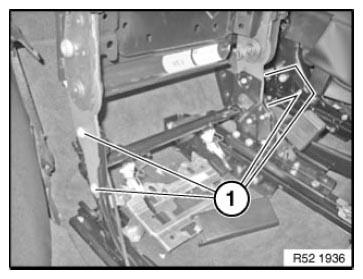

Fig 5: Identifying Rear Seat Backrest Screws

G08486955

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove DAMPER .
Remove ACTUATING MECHANISM FOR REAR SEAT .
Remove BOWDEN CABLE FOR REAR SEAT .
Remove CONTROL UNIT for seat heating.
Remove seat belt buckle.
