52 26 411 Replacing backrest cover for left rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove left REAR SEAT .
• Remove GUIDE SLEEVES .

With seat heating only as optional equipment:

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Backrest Frame Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 21AZ .

Fig 2: Identifying Rear Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 06AZ .

Lift out trim.

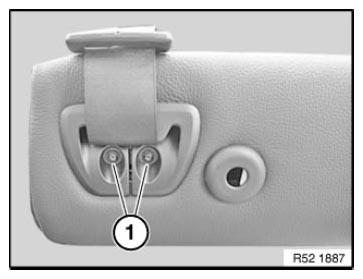

Fig 3: Identifying Rear Seat Backrest Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out seat belt strap (1) from cover (2).

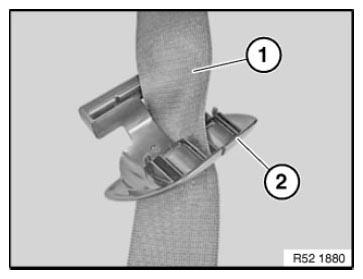

Fig 4: Identifying Seat Belt Strap And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area of rear panel.

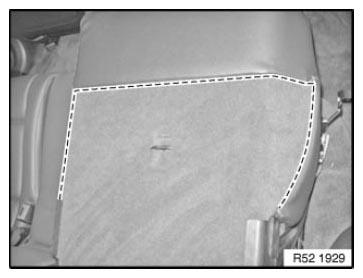

Fig 5: Identifying Rear Panel Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover with padding.

Feed out seat belt strap (1) from backrest cover.

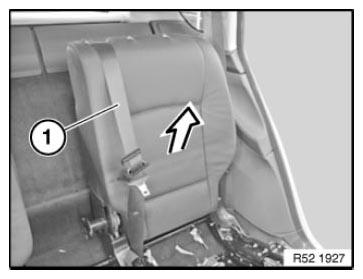

Fig 6: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

• Release all retainers in marked area.
• Remove cover from padding.
• Remove remaining retainers from cover and padding.

Replacement only:

• Pull all trim wires out of cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets

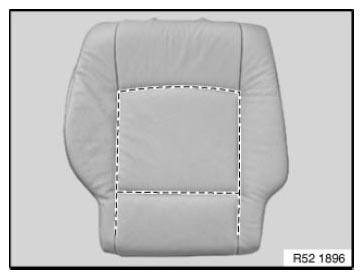

  Fig 7: Identifying Seat Cover Trim Wire

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in seat cover
5. Backrest cover

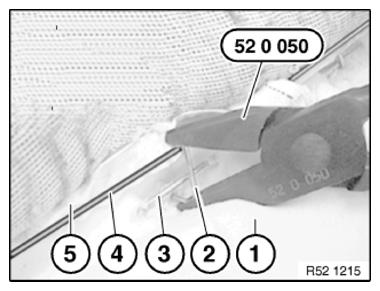

   Fig 8: Inserting Backrest Cover Clamp Using Special Tool (52 0 050)
