52 26 300 Removing and installing or replacing left or right controller for rear seat surface

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Tightening torque 52 26 09AZ .

Disengage Bowden cable nipple.

NOTE: If necessary, unclip controller cover.

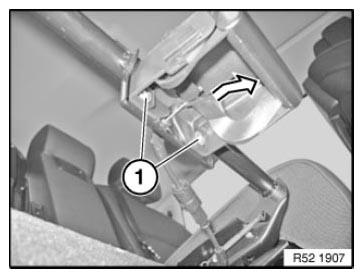

Fig 1: Disengaging Bowden Cable Nipple Screw
G08487018Courtesy of BMW OF NORTH AMERICA, INC.
