52 26 118 Removing and installing/replacing Bowden cable for left or right rear seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left or right REAR SEAT

Disconnect spring (1).

Unclip Bowden cable sleeve (2).

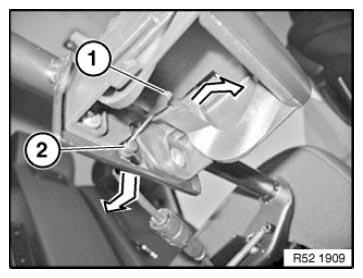

Fig 1: Removing Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (2).

Unthread Bowden cable nipple (1) from actuator.

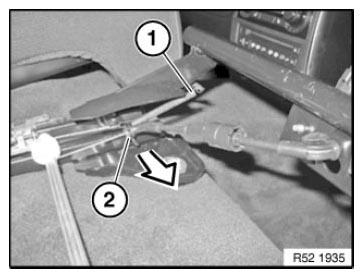

Fig 2: Removing Bowden Cable Nipple From Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
