52 26 135 Removing and installing/replacing left rear seat backrest frame
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left REAR SEAT .
With seat heating only as optional equipment:

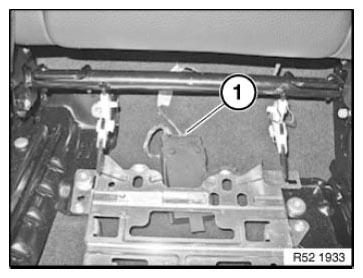

Unfasten plug connection (1) and disconnect.

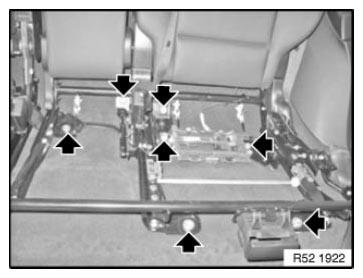

Unscrew all bolts.
Tightening torque 52 26 01AZ .
Work with helper to remove backrest frame from vehicle.
