52 14 020 Removing and installing/replacing seat frame on left or right front seat: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove driver's or front passenger seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .
- REMOVE inner cover on front seat
- Remove OUTER COVER ON FRONT SEAT

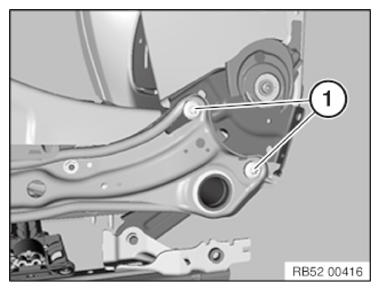

Drill out rivets (1) on left and right.
Installation note:
Completely remove rivet residue.
Unhook seat cover on left and right.
Release all plug connections and cable clips from the seat frame.

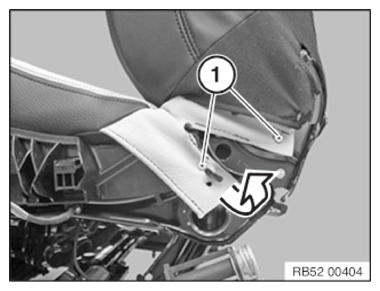

Release screws (1).
Disengage backrest frame with wiring harness.
Installation note:
Clean thread of nut in event of repeated use.
Apply screw locking.
Tightening torque 52 10 02AZ .
Replacement only
- Remove complete seat cover. See DRIVER'S SEAT or PASSENGER SEAT .
- Remove FORWARD/BACK SEAT ADJUSTMENT DRIVE UNIT
- Remove SEAT ANGLE ADJUSTMENT DRIVE UNIT
- Remove SEAT HEIGHT ADJUSTMENT DRIVE UNIT
