52 14 403 Replacing seat cover for front passenger seat (normal, electrical)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove INNER COVER on front seat.
Remove SUPPORT FOR OUTER COVER .
Remove REAR PANEL on front seat backrest.

WARNING: Only US and Canadian version of front passenger seat (with CIS mat):
The CIS mat can only be removed in conjunction with the padding from the seat cover.
If CIS mat or padding is defective, both parts may only be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
After fitting the seat cover, the CIS mat must be enabled with the BMW PROGRAMMING SYSTEM .

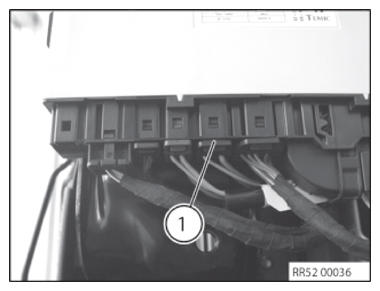

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of seat mechanism.

Fig 1: Identifying Seat Mechanism Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

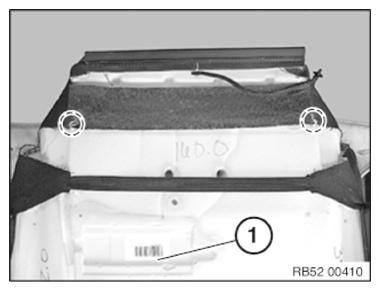

Lever out left and right clips (1).

Fig 2: Identifying Seat Mechanism Clips

Courtesy of BMW OF NORTH AMERICA, INC.

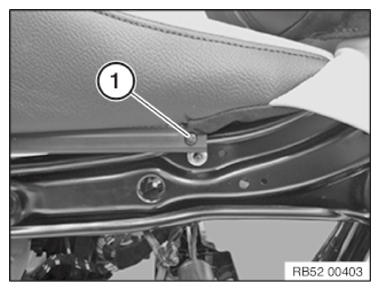

Drill out rivet heads (1) left and right.

Detach seat cover tab from seat frame.

Installation note:

Completely remove rivet residue.

Fig 3: Removing Seat Frame Rivet Heads

Courtesy of BMW OF NORTH AMERICA, INC.

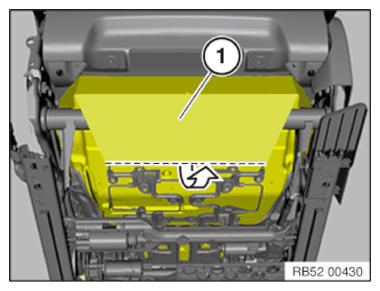

Detach welt (1) from seat mechanism.

Fig 4: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

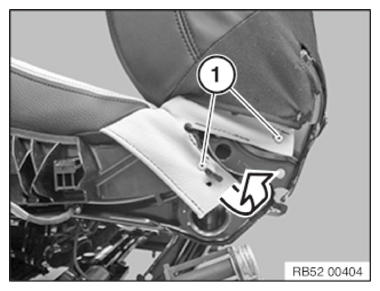

Detach welt (1) from seat mechanism.

Fig 5: Detaching Welt From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in marked area.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

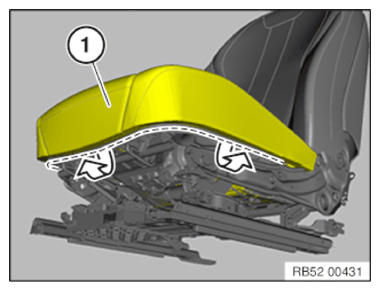

Feed seat cover out of upholstery (1).

Fig 6: Identifying Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

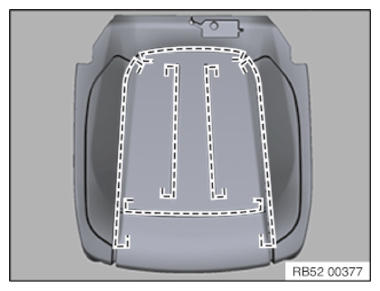

Release all clamps in marked area of trim wires.

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 7: Identifying Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

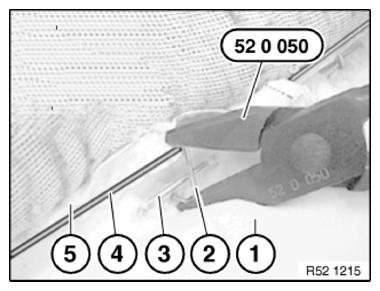

Bend new clamp (2) 52 0 050 closed with pliers.

Upholstery
Clamps
Welt in seat cover
Trim wire in upholstery
Seat cover

Fig 8: Inserting Clamp Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Enabling seat occupancy detector (CIS mat):

Connect BMW PROGRAMMING SYSTEM
Encode airbag control unit
Delete fault memory if necessary
