52 14 041 Removing and installing inner cover on left or right front seat (newer version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .

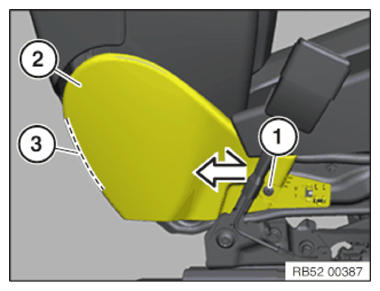

If need be, detach the cable from the cover (2).

Drill out blind rivet (1).

IMPORTANT: Use drill of correct diameter.
Make sure that cover (2) and seat frame are not damaged.

Feed cover (2) out of guides (3) in direction of arrow.

Fig 1: Removing Front Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

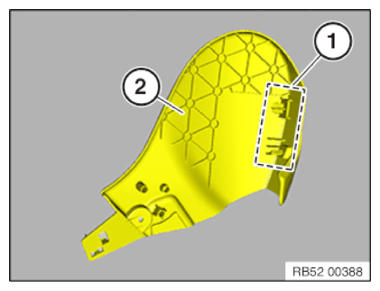

Guides (1) for cover (2) must be damaged or missing.

Fig 2: Identifying Front Seat Cover And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
