52 14 040 Removing and installing/replacing outer cover on left or right front seat (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, move seat fully forwards and upwards.

Remove trim:

Unclip at rear towards top side
Pull on belt opening to one side
Bend trim open slightly at top and bottom on actuating unit
Bend open slightly at top and bottom and pull outwards a little

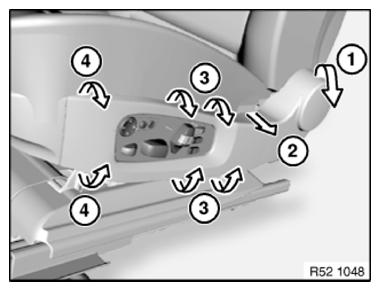

Fig 1: Identifying Front Seat Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips must not be damaged.

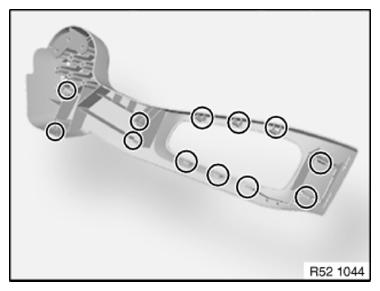

Fig 2: Identifying Front Seat Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
