67 31 520 Removing and installing/replacing seat height adjustment drive unit

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove driver's or front passenger seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .

Set down front seat sideways on a suitable surface.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 1AZ .

Feed out seat height adjustment drive unit (3) and remove.

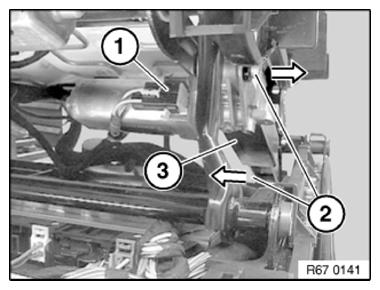

Fig 1: Removing Seat Height Adjustment Drive Unit

G09879923

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit seat height adjustment drive unit (1) with plastic clamp (2) only.

Make sure plastic clamp (2) is correctly seated.

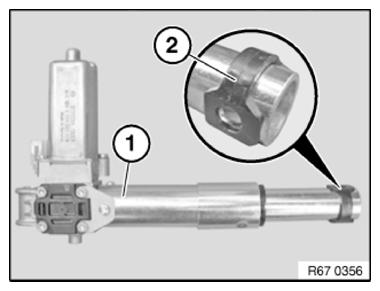

Fig 2: Identifying Seat Height Adjustment Drive Unit Plastic Clamp

G09879924

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement

INITIALIZE seat height adjustment drive unit.
