51 47 315 Removing and installing/replacing front carpet for passenger compartment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trims from bass speaker on left and right. See DRIVER'S SIDE (UNDER FRONT SEAT) and PASSENGER'S SIDE (UNDER FRONT SEAT) .
Remove CENTER CONSOLE SUPPORT
Remove A-pillar trim panel, bottom left and right. See A-PILLAR, RIGHT and A-PILLAR, LEFT .
Remove COMPLETE ACCELERATOR PEDAL MODULE

Cut out carpet (1) along heater box.

IMPORTANT: Choose cut so that center console conceals cutting edge after installation. Do not damage any cables or air ducts when cutting.

Remove carpet (1) toward rear/top and if necessary feed out cable.

Fig 1: Identifying Carpet

G09879589

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cutouts (1) serves as locators when installing carpet (2).

Replacement

Modify footrest, driver's side.

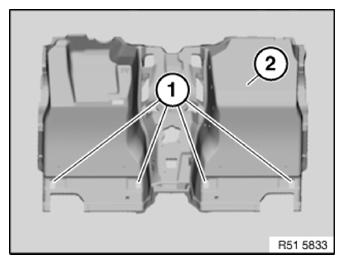

Fig 2: Identifying Carpet And Cutouts

G09879590

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip footwell net (1) on front passenger side.

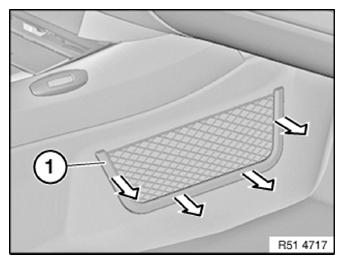

Fig 3: Unclipping Footwell Net

G09879591

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged retaining clips.

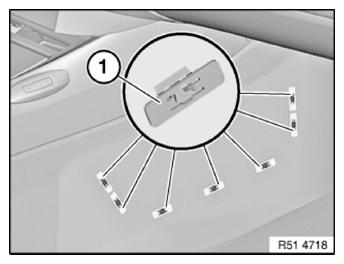

Fig 4: Identifying Footwell Net On Front Passenger Side

G09879592

Courtesy of BMW OF NORTH AMERICA, INC.
