35 40 001 Removing and installing or replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation note:

Tightening torque 35 40 1AZ .

Fig 1: Pulling Accelerator Pedal Module Upwards Out Of Fixture
G04726718Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector (1).

Remove accelerator pedal module.

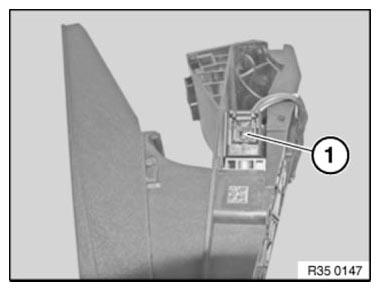

Fig 2: Identifying Accelerator Pedal Module Connector
G06894916Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
