51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP (INSIDE)
Remove TRIM PANEL FOR PEDAL MECHANISM .

Release screw (1).

Remove handle from bonnet cable release.

Release screw (2).

Fig 1: Identifying Screw Of Bonnet Cable

Courtesy of BMW OF NORTH AMERICA, INC.

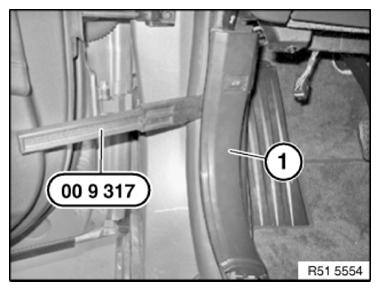

Carefully lever out A-pillar trim panel (1) using special tool 00 9 317 .

Disconnect plug connection behind.

Installation note:

Neatly fit A-pillar trim (1) into door seal.

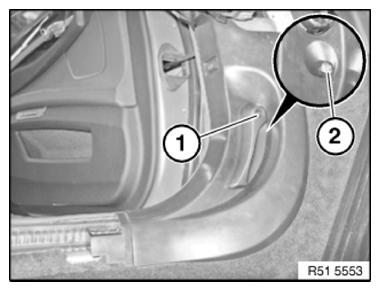

Fig 2: Fitting A-Pillar Trim Into Door Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure A-pillar trim panel (3) is correctly seated.

If necessary, replace both clips (1) and clamp (2).

Replacement

Modify clips (1)
Modify luggage compartment locking system switch

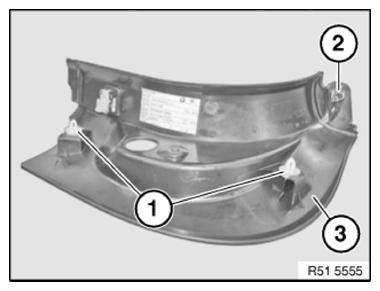

Fig 3: Identifying Clips, Clamp And A-Pillar Trim Panel
Courtesy of BMW OF NORTH AMERICA, INC.
