51 16 181 Replacing center console carrier

Necessary preliminary tasks:

• Remove complete CENTER CONSOLE
• Remove REAR CENTER CONSOLE TRIM

Unfasten screws (2).

Installation:

Replace self-locking screws (2).

Tightening torque 51 16 4AZ .

If necessary, disconnect plug connection from aerial for comfort access (1).

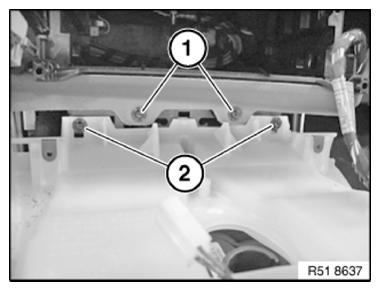

Fig 1: Identifying Self-Locking Screws And Plug Connection From Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Replace self-locking screws (1).

Tightening torque 51 16 4AZ .

Disconnect plug connection from rear compartment blower.

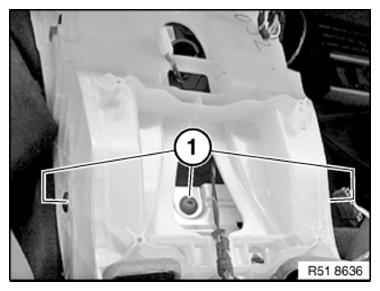

Fig 2: Identifying Self-Locking Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Raise center console carrier (3) slightly and pull out wiring harness.

Remove carrier.

Fig 3: Identifying Screws And Center Console Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Modify rear compartment air duct (2)

Modify all plastic nuts (1).

Installation:

Replace defective nuts.

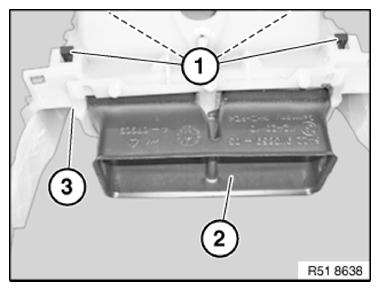

Fig 4: Identifying Rear Compartment Air Duct And Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from front bracket (2) and (remove bracket.)

Perform additional work steps according to equipment specification:

Release screws (3) from front compartment blower (4) and remove blower.

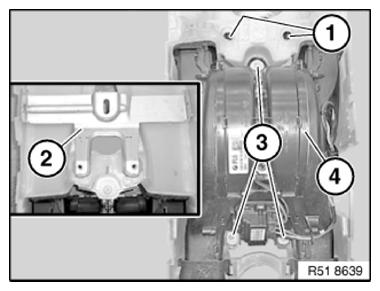

Fig 5: Identifying Screws From Front Bracket And Front Compartment Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from aerial for comfort access (3) (and remove aerial.)

Modify plastic nut (2).

Installation:

Replace defective nut.

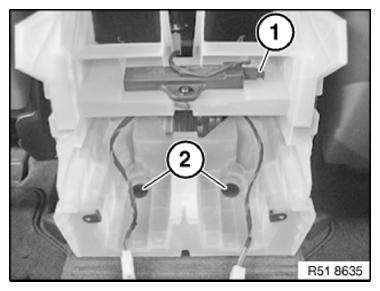

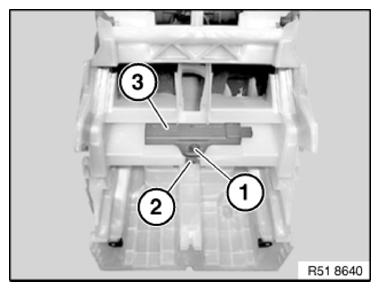

Fig 6: Identifying Screw And Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.
