51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DOOR SILL COVER STRIP, FRONT (INSIDE) RIGHT
Remove DASHBOARD TRIM AT BOTTOM RIGHT

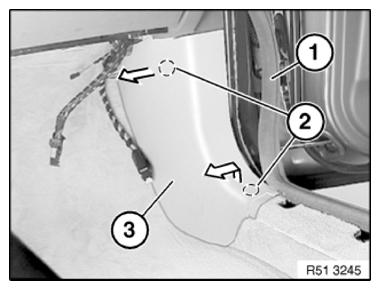

Detach edge protection (1) in area of side trim (3).

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

Installation note:

Clips (2) for side trim panel trim (3) must not be damaged.

Fig 1: Pulling Out Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

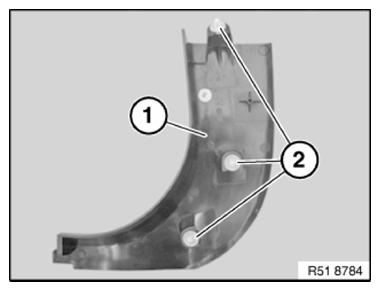

Modify clips (2) for side trim panel (1).

Fig 2: Identifying Clips And Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
